Safe Temp. Kiosk Thermal Scanner Face Recognition Access Control 当前所在位置：首页 >> 产品展示 >> Safe Temp. Kiosk The...

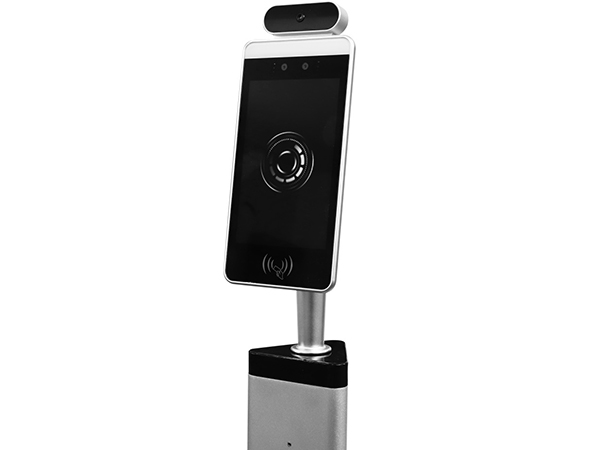

产品名称：Safe Temperature Kiosk Thermal scanner face recognition access control terminal for security
文件下载：
详细描述
产品参数
8” 10.1” available
Germany HEIMANN HTPA32x32dR2L2.1/0.8F5.0HiC[Si] temperature sensor
Germany HEIMANN HTPA32x32dR2L2.1/0.8F5.0HiC[Si] temperature sensor
Touch/non touch screen available
Free Management software and APK provided.
Software: Support Standalone Version, LAN version for Linux & Windows OS server, WAN LAN version for Linux & Windows OS server
Support clients install software in their public IP server to get a cloud server.
Software: Support Standalone Version, LAN version for Linux & Windows OS server, WAN LAN version for Linux & Windows OS server
Support clients install software in their public IP server to get a cloud server.
Management Software: Support Standalone Version, LAN version for Linux & Windows OS server, WAN LAN version for Linux & Windows OS server
Support clients install software in their public IP server to get a cloud server.
Support clients install software in their public IP server to get a cloud server.
This will be convenient for client to install management software for their final user on LINUX or WINDOWS server with public IP address and help their final clients can install the terminal in different place for city but control from one console.
Download link: https://1drv.ms/u/s!Ah4aqbNQPC8th2kPEQg-_7MMJjOC?e=dD7hzS
8” 10.1” available
Germany HEIMANN HTPA32x32dR2L2.1/0.8F5.0HiC[Si] temperature sensor
Germany HEIMANN HTPA32x32dR2L2.1/0.8F5.0HiC[Si] temperature sensor
Touch/non touch screen available
Free Management software and APK provided.
Software: Support Standalone Version, LAN version for Linux & Windows OS server, WAN LAN version for Linux & Windows OS server
Support clients install software in their public IP server to get a cloud server.
Software: Support Standalone Version, LAN version for Linux & Windows OS server, WAN LAN version for Linux & Windows OS server
Support clients install software in their public IP server to get a cloud server.
Management Software: Support Standalone Version, LAN version for Linux & Windows OS server, WAN LAN version for Linux & Windows OS server
Support clients install software in their public IP server to get a cloud server.
Support clients install software in their public IP server to get a cloud server.
This will be convenient for client to install management software for their final user on LINUX or WINDOWS server with public IP address and help their final clients can install the terminal in different place for city but control from one console.
Download link: https://1drv.ms/u/s!Ah4aqbNQPC8th2kPEQg-_7MMJjOC?e=dD7hzS
Product Features updated:
1, Face Recognition camera build in for access control system,
2, High Level Germany HEIMANN temperature sensor for body temperature measurement,
3, With IC/ID card reader for access control system,
4, Stand alone version, narrow network version, cloud server version available,
5, Free smart Pass Management Software, APK and API provided, 24hours online support available,
6, Multi size and design available, touch/non touch screen available, customized color available,

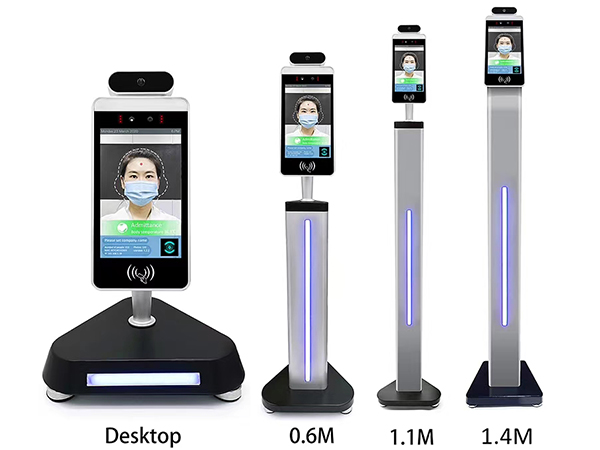

7, Installation way: Wall mounted, desktop stands, free standing stands, install on access control gate,
8, Installation location: School, hospital, airport, railway station, village, mall, store, office, company, commercial building, etc,
9, Works perfectly outdoor under sun, works perfectly under Low temperature environment,
10, Certificated: CE, FCC, RoHS, CB, KC, CCC etc,
11, Strong and stable Android mother board, Android OS. With multi languages for various market,
12, Fast delivery time. Ready to ship out within 2 or 3days for order under 300pcs,
13, Multi connectors for connecting different device,
14, Play advertisement when no body come close. Upload end users‘ logo. company info.
15, 4G module for optional to install in location without WIFI but need management control via server.
Product Introduction:
Adopting the high-performance hardware platform of RSM micro rk3288 / rk3399 / Qualcomm msm8953, equipped with industrial grade binocular camera and human face recognition technology, as well as infrared thermal imaging module, it supports mask recognition. It also supports the extension of ID card reader, fingerprint instrument and other peripheral devices, which can be applied to gate channel and access control attendance, and realize the safe and efficient access control of personnel.
Application scenario:
It can be matched with access gate and access control for communities, office buildings, schools, hotels
Scenic spots, transportation hub centers and other public service places, etc.
Adopting the high-performance hardware platform of RSM micro rk3288 / rk3399 / Qualcomm msm8953, equipped with industrial grade binocular camera and human face recognition technology, as well as infrared thermal imaging module, it supports mask recognition. It also supports the extension of ID card reader, fingerprint instrument and other peripheral devices, which can be applied to gate channel and access control attendance, and realize the safe and efficient access control of personnel.
Application scenario:
It can be matched with access gate and access control for communities, office buildings, schools, hotels
Scenic spots, transportation hub centers and other public service places, etc.
Technical Parameter:
Product model:TPK-FRTD-001
Resolution: 200W pixels
Camera type: binocular wide dynamic camera; Focus distance: 50-150cm; White Balance: Auto.
Screen size: 8.0 "IPS LCD
Resolution: 800x1280
Processor CPU rk3288 quad core / rk3399 six core / msm8953 eight core
Local storage EMMC 8g
Accessories: fill light, led and infrared double fill light
Network module supports: Ethernet and wireless (W old)
Interface audio supports 2.5w/4r horn
USB interface: 1 USB OTG, 1 USB host standard a
Serial communication interface: one RS232 serial port
Relay output 1 channel door opening signal output
Wigan interface: one channel of Wigan 26 / 34 output, one channel of Wigan 26 / 34 input
Upgrade button supports the uboot upgrade button
Wired network interface 1-way RJ45 Ethernet base
Face detection supports detection and tracking of multiple people at the same time
Face database supports up to 30000
1: N face recognition support
1: 1 face matching support
Stranger detection support
Function identification distance configuration support
UI interface configuration support
Device remote upgrade support
Equipment interface includes equipment management, personnel / photo management, record query, etc
Deployment mode: support public cloud deployment, privatization deployment, LAN use, stand-alone use Human body temperature detection support
Temperature detection distance [ Meter
Temperature measurement accuracy < ± 0.2 ° C
Temperature measurement range: 10 ° C ~ 42 ° C
Thermal imaging field of view 32 x 32 ° C
Visit object SIE Continuous constant temperature direct release support
Temperature over temperature alarm support (temperature alarm value can be set)
Protection grade: IP65, with certain outdoor dust-proof and waterproof functions
Power supply DC12V (± 10%)Operating temperature - 10 ° C ~ 60 ° C
Storage temperature - 20 ° C ~ 60 ° C
General parameter power consumption: 13.5w (max)
Installation mode: gate support installation
Equipment size: 238.24 * 128 * 25 (mm)
Weight: 1.45kg
Product model:TPK-FRTD-001
Resolution: 200W pixels
Camera type: binocular wide dynamic camera; Focus distance: 50-150cm; White Balance: Auto.
Screen size: 8.0 "IPS LCD
Resolution: 800x1280
Processor CPU rk3288 quad core / rk3399 six core / msm8953 eight core
Local storage EMMC 8g
Accessories: fill light, led and infrared double fill light
Network module supports: Ethernet and wireless (W old)
Interface audio supports 2.5w/4r horn
USB interface: 1 USB OTG, 1 USB host standard a
Serial communication interface: one RS232 serial port
Relay output 1 channel door opening signal output
Wigan interface: one channel of Wigan 26 / 34 output, one channel of Wigan 26 / 34 input
Upgrade button supports the uboot upgrade button
Wired network interface 1-way RJ45 Ethernet base
Face detection supports detection and tracking of multiple people at the same time
Face database supports up to 30000
1: N face recognition support
1: 1 face matching support
Stranger detection support
Function identification distance configuration support
UI interface configuration support
Device remote upgrade support
Equipment interface includes equipment management, personnel / photo management, record query, etc
Deployment mode: support public cloud deployment, privatization deployment, LAN use, stand-alone use Human body temperature detection support
Temperature detection distance [ Meter
Temperature measurement accuracy < ± 0.2 ° C
Temperature measurement range: 10 ° C ~ 42 ° C
Thermal imaging field of view 32 x 32 ° C
Visit object SIE Continuous constant temperature direct release support
Temperature over temperature alarm support (temperature alarm value can be set)
Protection grade: IP65, with certain outdoor dust-proof and waterproof functions
Power supply DC12V (± 10%)Operating temperature - 10 ° C ~ 60 ° C
Storage temperature - 20 ° C ~ 60 ° C
General parameter power consumption: 13.5w (max)
Installation mode: gate support installation
Equipment size: 238.24 * 128 * 25 (mm)
Weight: 1.45kg
Shenzhen TOPADKIOSK is highly specialized in the field of LCD Digital Signage products, LCD DISPLAY, QLED display, OLED display. We have developed our own LCD products Series, such as face recognition terminal with temperature sensor for access control system, digital signage, all In One PC, touch screen, lcd video wall, outdoor IP67 High Brightness LCD Digital Signage and TV, etc, the size is available with 7" Inch to 98 Inch etc. These products have been widely used in the USA, Europe, Southeast Asia, the Middle East, Africa and other countries and regions. These products are suitable for advertising in lots of areas, such as buildings, shops, hotels, supermarkets, railway stations, bus stations, airports, taxis, buses and other outdoor areas. Quality and Service is Our Symbol.The most important factor for us to win our customers‘ hearts and found the long-term business relationships with our customers is quality and service. With these years‘ research, development and manufacture, we have accumulated our special experience and methods to control the quality through the whole process of designing, material purchasing, manufacturing and marketing. Especially for the material quality, we have founded firm relationships with our suppliers and even invested in some supply companies to directly control quality. We offer 7*24 hours service to all our clients. Our sales person and after-selfteam will keep on line to answer and solve all questions for you. Providing services beyond our customers‘ expectations is our purpose. Our excellent pre-sales services and after-sales services have earned us many customers‘ hearts. Customized designs are most welcome! Our advantage is to give solution to our clients according to their needs.
