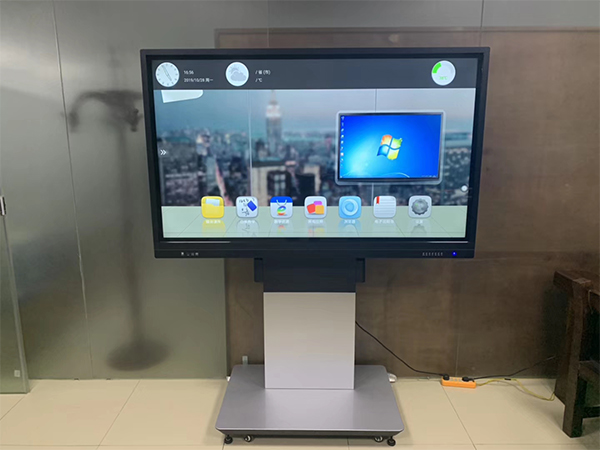

Smart all in one kiosk for meeting and teaching
 interactive touch screen kiosk for teaching

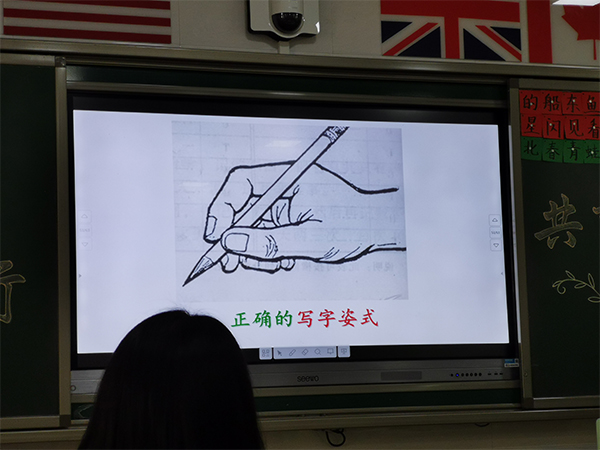

All in one interactive touch screen kiosk for teaching and class room
size: 43" 55“ 65” 75“ 85” 98" 100"
Android and Windows OS

Panel parameter	Size	65"  75" 86" 98"inch LED Screen
	Display area	65" 1488*868mm  75" 1649.66x927.936mm 86" 86" 1895.04(W)×1065.96(H) mm  98"2158.85*1214.35 mm
	Brand	LG/SAMSUNG
	Resolution	1920*1080
	Brightness	400cd/m*2
	Aspect ratio	16:09
	Response time	6.5MS
	Contrast	4000:1
	View angle	178°/178°(H/V)
Specification	CPU	I3
	Mainboard	H81
	HDD	S-ATAII 500GB/16MB/7200rpm
	Memory	DDR3-1333 , 4GB
	PC I/O Connectors	4 * USB 2.0, 2*PS/2，1 * RJ45, 1 * Line-in,  1 * Earphone, 1 *  Microphone, 1*HDMI
	Network	built-in Realtek RTL8103EL
	Audio	built-in HD audio 8(Realtek ALC888) audio system
Touch screen	Size	65" 75" 86" 98"
	touch type	infrared multi point touch
TV signal input		YES
Remote Control		YES
OS		Compatible with Window7,Window8,XP, etc. (trial version)
OS 2		Android OS 5.1 (RK3288,2G+8G)
OSD Language		Chinese, English, Spanish, Russian, German, French, Arabic, etc.
Wifi		Yes
Environment		Operating Temperature :0°C to 40°C  Storage Temperature :-20°C to 60°C Humidity:20%-80% RH at 40°C,
System Power Supply		AC 110V~240V,50/60HZ
TFT panel grade		imported panel with original package
Case		Cold rolled steel+powder coating

 Smart all in one kiosk for meeting and teaching
 interactive touch screen kiosk for teaching
All of our products series, every design can be made with following function (Both indoor and outdoor):
***USB version AD player: update advertisement by USB (Stand-alone Version)
***Network version advertising player: update advertisement through internet, support both Android OS and
UCOS OS, Windows OS (Network Version)
***PC version kiosk (Infrared / capacitive touch screen optional): same function as computer, compatible with
Windows7,windows8,Windows XP, Linux, Ubantu, Apple etc. (Built-in PC Version, touch screen optional)
Can also be customized with equipments such as printer, scanner, camera, keyboard,motion sensor, WIFI adaptor etc.
***Android Infrared / capacitive touch screen kiosk: Android OS with touch screen. Can also be customized with
equipments such as printer, scanner, camera, keyboard, motion sensor, WIFI adaptor etc.
***LCD video wall, narrow bezel with HDMI or 4K display
***All kinds of monitors with or W/O touch, 2K or 4K display, open frame, tablets of all size
***Transparent LCD
***Bar type LCD

PRODUCTS:
From Design:
1, Floor standing model (Can be added wheels or no wheels, can be fasten to floor,
can also design according to your idea)

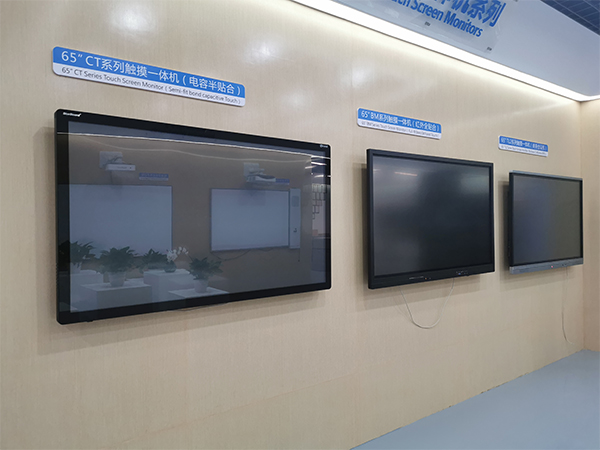

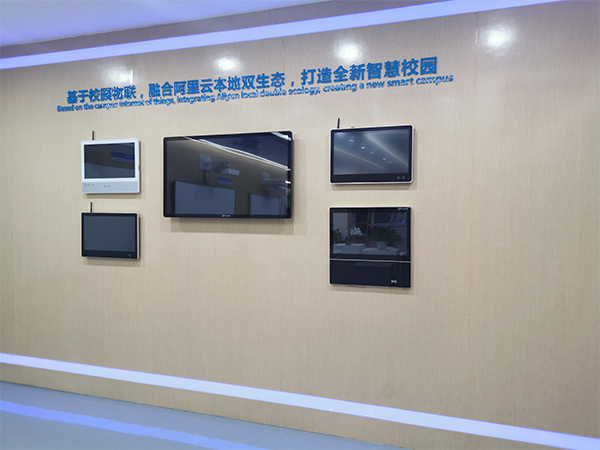

2, Wall mounted screens
3, Hanging screens
4, Horizontal screens
From Function:
1,Monitor with or W/O Touch
2, Digital signage
3, Android touch / Non Touch
4,Windows touch / Non Touch
5,Selfservice terminal: can add camera, printer, scanner, led light, etc.
From Environment:
Indoor and outdoor
Screen Size: 10.1" to 105"
Display: 1920*1080 or 4k 3840*2160
Android: Anvertising screen: RAM 1G, ROM:8G Android OS 4.4.2
Android Touch for use your own Android Software: RAM 2G/4G,
ROM: 8G/16G/32G for your choice, Android OS: 5.1, 6.0 or above.
PC: CPU: J1900. G1840, I3, I5, I7 optional.
Memory: 2G, 4G, 8G 16G optional.
Hard Disk: 500G HHD, 64G SSD, 120G SSD, 240G SSD optional.
Touch: Infrared Touch or capacitive touch optional.
Device: Can add camera, printer, scanner, card reader, password
keyboard, fingerprinter device,mouse, bill acceptor, card dispensor, etc.

Outdoor Kiosk:
1. Waterproof. 2, Dusty proof. 3, lightning protection.
4. With tempered glass, anti glare, ultraviolet-proof.
5. Built-in cooling fan system. 6, Air conditioner Optional
7. Can be with or W/O touch 8, Temperature:-30°C to 50°C
9. Can build in device into kiosk 10, Customized design available.
11. Support Android, Windows or other OS.
12. High Brightness.


LCD Video wall:
Panel: LG, SAMSUNG, AUO/BOE
SAMSUNG, best quality
LG: great quality
BOE/AUO: general quality

Connection way:
1. Using HDMI splitter, stable quality, HDMI resolution.
2. Using DVI looping connection, HDMI resolution.
3. Using DP looping connection, 4K resolution, need signal INPUT and
media resource to be 4k.
4. Can use HDMI matrix for multi-signal input such as PC, camera,etc.
5. Can use large screen processor for signal input, for example:
16 HDMI in, 16 HDMI out, 8 VGA in and 8 VGA out, etc, can be customized.
Can have float windows, picture in picture.

Cables:
HDMI cable, DP cable-if 4k, RJ45 cable, power cables,etc.
Bracket:
1. Normal bracket, can not pop-in and pop-out
2. Pop-in and pop-out bracket, better for future front maintaince
For signal input:
1. Can use media player boxes for input HDMI or 4K signal. Can buy
media player box in local market or buy from us.
2. Can use PC for signal input.
3. Can use camera for signal input with HDMI/SDI output.
4. Matrix
5. Large screen processor
Outer design:
1. Install onto the wall
2. Make as floor standing
3. Floor standing with cabinet below
4. Can make whole unit with frame and cabinet
5. Can make whole unit with floor standing cabinet, frame, can add big tempered glass,
add IR touch frame, make the whole video wall as big touch screen monitor, can also
build in PC or android hardware, make it as Android or PC touch kiosk.
6. Can add motion sensor into this big kiosk, let it have motion sensor function.
7. Can also make curved bracket, to make it as curved video wall.

Product Specs:
Android version

Panel Details	Panel Brand	Samsung/LG
Android	CPU	Quad-Core / Octa-Core
	RAM	2GB/4GB
	ROM ( internal memory )	8GB/16GB
	OS	Android 5.1 or above
Decoding Formats	Video Format	MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,H.264,MOV,WMV,RM,RMVB,etc.
	FHD 1080P Video	YES
	Picture Format	JPG, BMP,PNG,etc.
	Text	TXT
	Audio Format	MP3,WAV
Interface	HDMI Output	1 ( Quad-Core version )
	SD/ TF card slot	1
	USB	1
	RJ45	1
Network	Wifi	available
	3G/4G	optional
	Ethernet	available
Touch screen	option 1	IR touch ( 10 points )
	option 2	capacitive touch (10 points )
Speakers	Speakers	2 x 5W stereo speakers
remote control software	optional
Features
1.Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc.
2. Outer shell is made of extra good quality metal material and tempered glass.
3.This machine is of android OS design, which could be connected to internet,and supports remote office cotrol .
4.Remotely report system utilization and memory usage.
5.Content plays automatically upon set up of schedule.
6.Control, monitor and design screen layouts remotely by the remote control office.
7.Color for metal outer frame is available with Black color, Shinning-silver color, Golden Color, cream-white color; Color Is Optional.
8.APPs are available on Google Play and APP Store
9.Easy connection to wifi.

PC version

Panel Details	Panel Brand	Samsung/LG/AUTO/ LCD/LED/Chimee
Mini-PC	CPU	i3, i5, i7
	RAM	4GB/8GB
	ROM	500GB HDD or 64/120/240GB SSD
	OS	Windows OS or Linux OS
Interface	HDMI Output	1
	USB	4
	RJ45	2
Network	Wifi	support
	3G	support
	Ethernet	support
Touch screen	option 1	IR touch ( 10-16 points )
	option 2	capacitive touch (10 points )
Speakers	Speakers	2 x 2W or 2 x 5W stereo speakers
remore control software	optional
Features
1.Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc.
2. Outer shell is made of extra good quality metal material and tempered glass.
3.This machine is with mini PC built in, customers can install Windows or Linux freely. Or let us install OS before shipment.
4.Easy connection to Internet.
