SIZE (INCH) | MODEL NO. | BRIGHTNESS | RESOLUTION | RATE | CONTRAST |
3.9 | TPK039TXP01 | 150nit | 480X140 | 16:04.5 | 500:01:00 |
5.7 | TPK057TXP01 | 200nit | 800X310 | 16:05 | 600:01:00 |
7.36 | TPK0736TXP | 700nit | 1280X400 | 16:05 | 1000:01:00 |
8 | TPK080TXP01 | 700nit | 800x202 | 16:04.1 | 500:01:00 |
16.4 | TPK164TXP01 | 700nit | 1366*230 | 16:02.7 | 1000:01:00 |
16.8 | TPK168TXP01 | 800nit | 1366x378 | 16:04.5 | 1000:01:00 |
19.1 | TPK191TXP01 | 700nit | 1920x340 | 16:02.8 | 1000:01:00 |
19.2 | TPK192TXP21 | 700nit | 1920x384 | 16:03.2 | 1000:01:00 |
19.7 | TPK197TXP11 | 700nit | 1920x624 | 16:05.2 | 1000:01:00 |
21.9 | TPK219TXP01 | 300nit | 1970x720 | 16:06 | 1000:01:00 |
24.6 | TPK246TXP01 | 700nit | 1920*578 | 16:04.8 | 1200:01:00 |
28 | TPK280TXP-GF01 | 600nit | 1920x360 | 16:03 | 5000:01:00 |
28.8 | TPK288TXP01 | 550nit | 1366x384 | 16:04.5 | 1200:01:00 |
28.8 | TPK288TXP11 | 550nit | 1366x384 | 16:04.5 | 1200:01:00 |
28.8 | TPK288TXP22 | 550nit | 1920X540 | 16:04.5 | 5000:01:00 |
28.8 | TPK288TXP-GF01 | 550nit | 1920X540 | 16:04.5 | 5000:01:00 |
30 | TPK300TXP01 | 800nit | 1366x512 | 16:06 | 3000:01:00 |
36.6 | TPK368TXP01 | 700nit | 1920x290 | 16:02.4 | 3000:01:00 |
36.8 | TPK368TXP01 | 700nit | 1920x360 | 16:03 | 3000:01:00 |
37.2 | TPK372TXP01 | 700nit | 1920*361 | 16:03 | 4000:01:00 |
38 | TPK380TXP01 | 800nit | 1920X540 | 16:04.5 | 5000:01:00 |
41.5 | TPK415TXP02 | 800nit | 1920X540 | 16:04.5 | 4000:01:00 |
48.5 | TPK485TXP-01 | 700nit | 1920X360 | 16:03 | 4000:01:00 |
49.5 | TPK495TXP01 | 700nit | 1920X540 | 16:04.5 | 1200:01:00 |
57.2 | TPKTPK572TXP-01 | 700nit | 1920X364 | 16:03 | 4000:01:00 |
57.5 | TPK575TXP01 | 700nit | 1920*405 | 16:03.3 | 4000:01:00 |
DOUBLE SPLICING | TPK288TXP-SP01 | 500nit | 1366x384 | 16:04.5 | 5000:01:00 |
DOUBLE SPLICING | TPK380TXP-SP01 | 700nit | 1920X540 | 16:04.5 | 5000:01:00 |
DOUBLE SPLICING | TPK415TXP-SP01 | 600nit | 1920X540 | 16:04.5 | 1000:01:00 |
DOUBLE SIDED | TPK288TXP-SM01 | 600nit | 1366x384 | 16:04.5 | 1200:01:00 |
Connection way:
1. Using HDMI splitter, stable quality, HDMI resolution.
2. Using DVI looping connection, HDMI resolution.
3. Using DP looping connection, 4K resolution, need signal INPUT and
media resource to be 4k.
4. Can use HDMI matrix for multi-signal input such as PC, camera,etc.
5. Can use large screen processor for signal input, for example:
16 HDMI in, 16 HDMI out, 8 VGA in and 8 VGA out, etc, can be customized.
Can have float windows, picture in picture.
Cables:
HDMI cable, DP cable-if 4k, RJ45 cable, power cables,etc.
Bracket:
1. Normal bracket, can not pop-in and pop-out
2. Pop-in and pop-out bracket, better for future front maintaince
For signal input:
1. Can use media player boxes for input HDMI or 4K signal. Can buy
media player box in local market or buy from us.
2. Can use PC for signal input.
3. Can use camera for signal input with HDMI/SDI output.
4. Matrix
5. Large screen processor
Outer design:
1. Install onto the wall

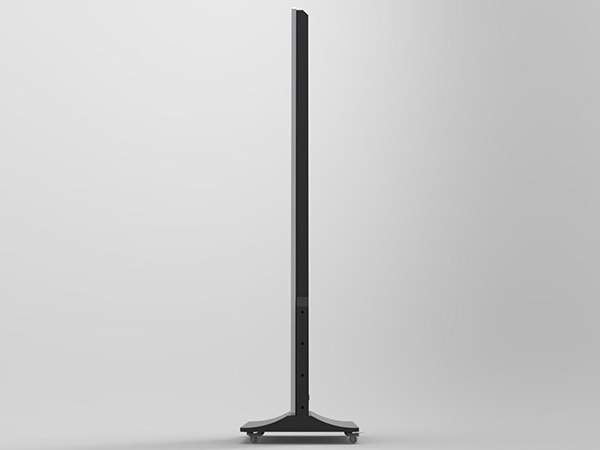

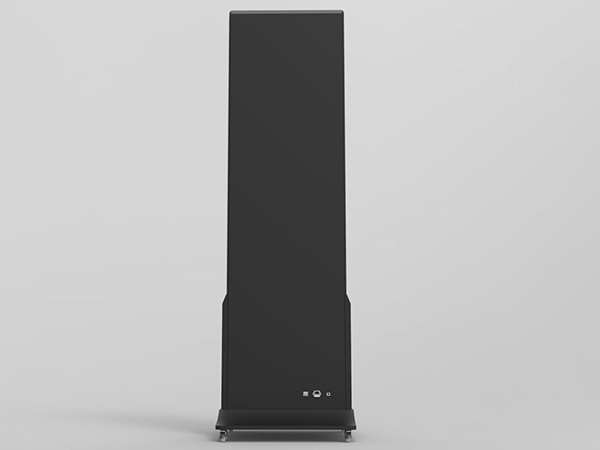

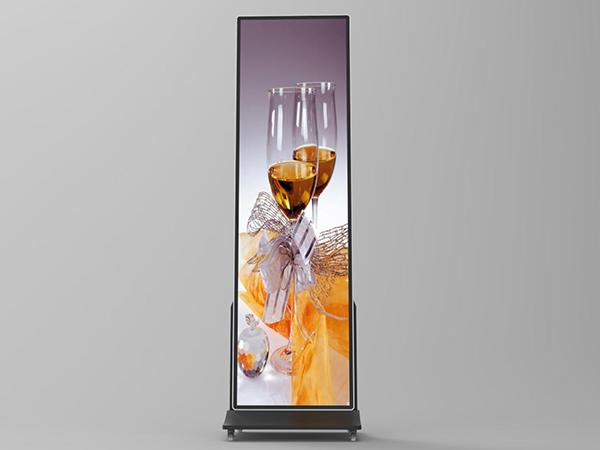

2. Make as floor standing
3. Floor standing with cabinet below
4. Can make whole unit with frame and cabinet
5. Can make whole unit with floor standing cabinet, frame, can add big tempered glass,
add IR touch frame, make the whole video wall as big touch screen monitor, can also
build in PC or android hardware, make it as Android or PC touch kiosk.
6. Can add motion sensor into this big kiosk, let it have motion sensor function.
7. Can also make curved bracket, to make it as curved video wall.
Product Specs:
Android version
Panel Details |
Panel Brand | Samsung/LG |
Android | CPU | Quad-Core / Octa-Core |
RAM | 2GB/4GB | |
ROM ( internal memory ) | 8GB/16GB | |
OS | Android 5.1 or above | |
Decoding Formats |
Video Format | MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,H.264,MOV,WMV,RM,RMVB,etc. |
FHD 1080P Video | YES | |
Picture Format | JPG, BMP,PNG,etc. | |
Text | TXT | |
Audio Format | MP3,WAV | |
Interface | HDMI Output | 1 ( Quad-Core version ) |
SD/ TF card slot | 1 | |
USB | 1 | |
RJ45 | 1 | |
Network | Wifi | available |
3G/4G | optional | |
Ethernet | available | |
Touch screen | option 1 | IR touch ( 10 points ) |
option 2 | capacitive touch (10 points ) | |
Speakers | Speakers | 2 x 5W stereo speakers |
remote control software | optional | |
Features | ||
1.Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc. | ||
2. Outer shell is made of extra good quality metal material and tempered glass. | ||
3.This machine is of android OS design, which could be connected to internet,and supports remote office cotrol . | ||
4.Remotely report system utilization and memory usage. | ||
5.Content plays automatically upon set up of schedule. | ||
6.Control, monitor and design screen layouts remotely by the remote control office. | ||
7.Color for metal outer frame is available with Black color, Shinning-silver color, Golden Color, cream-white color; Color Is Optional. | ||
8.APPs are available on Google Play and APP Store | ||
9.Easy connection to wifi. |
PC version
Panel Details | Panel Brand | Samsung/LG/AUTO/ LCD/LED/Chimee |
Mini-PC | CPU | i3, i5, i7 |
RAM | 4GB/8GB | |
ROM | 500GB HDD or 64/120/240GB SSD | |
OS | Windows OS or Linux OS | |
Interface | HDMI Output | 1 |
USB | 4 | |
RJ45 | 2 | |
Network | Wifi | support |
3G | support | |
Ethernet | support | |
Touch screen | option 1 | IR touch ( 10-16 points ) |
option 2 | capacitive touch (10 points ) | |
Speakers | Speakers | 2 x 2W or 2 x 5W stereo speakers |
remore control software | optional | |
Features | ||
1.Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc. | ||
2. Outer shell is made of extra good quality metal material and tempered glass. | ||
3.This machine is with mini PC built in, customers can install Windows or Linux freely. Or let us install OS before shipment. | ||
4.Easy connection to Internet. |
Stretched bar lcd advertising players for shelf in malls
BAR LCD DAVERTISING PLAYER DIGITAL SIGNAGE
Stretched Bar LCD display digital signage
Stretched bar lcd display shelf screen
bar lcd display
Can make as monitor with HDMI input, advertising player, android OS, Windows all in one screen, touch or non touch screen.
