Product name:LED SCREEN LED POSTER
File:
Detailed description Product parameters

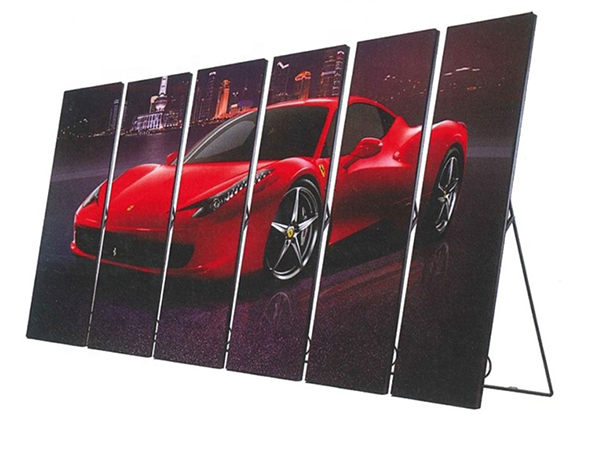

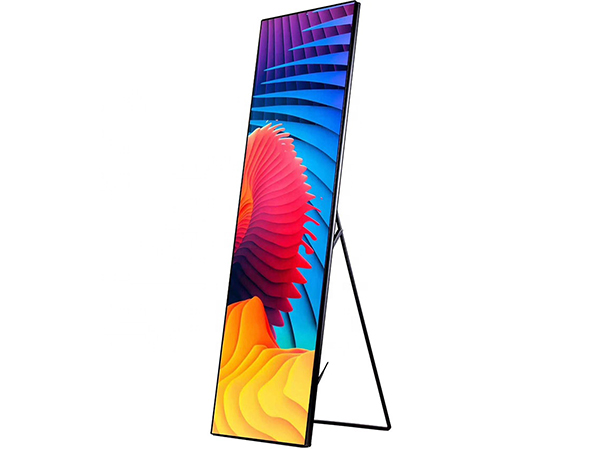

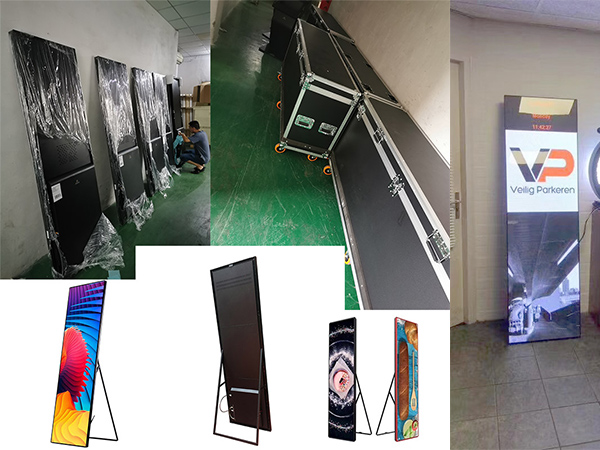

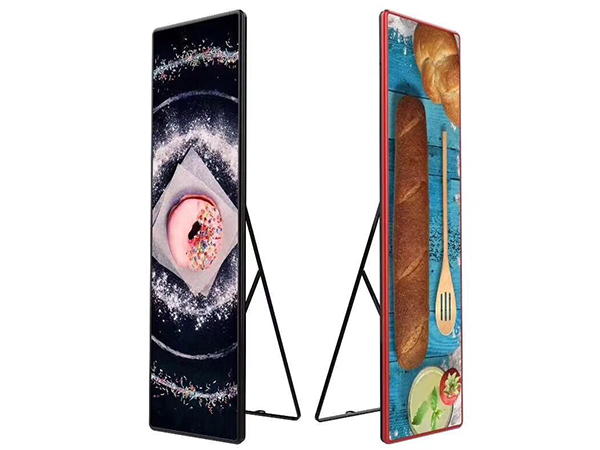

LED SCREEN LED POSTER

Shenzhen TOPADKIOSK is highly specialized in the field of LCD Digital Signage products, LCD DISPLAY, QLED display, OLED display. We have developed our own LCD products Series, such as digital signage, all In One PC, touch screen, lcd video wall, outdoor IP67 High Brightness LCD Digital Signage and TV, etc, the size is available with 7" Inch to 98 Inch etc. These products have been widely used in the USA, Europe, Southeast Asia, the Middle East, Africa and other countries and regions. These products are suitable for advertising in lots of areas, such as buildings, shops, hotels, supermarkets, railway stations, bus stations, airports, taxis, buses and other outdoor areas. Quality and Service is Our Symbol.The most important factor for us to win our customers‘ hearts and found the long-term business relationships with our customers is quality and service. With these years‘ research, development and manufacture, we have accumulated our special experience and methods to control the quality through the whole process of designing, material purchasing, manufacturing and marketing. Especially for the material quality, we have founded firm relationships with our suppliers and even invested in some supply companies to directly control quality. We offer 7*24 hours service to all our clients. Our sales person and after-selfteam will keep on line to answer and solve all questions for you. Providing services beyond our customers‘ expectations is our purpose. Our excellent pre-sales services and after-sales services have earned us many customers‘ hearts. Customized designs are most welcome! Our advantage is to give solution to our clients according to their needs.

LED SCREEN LED POSTER
Key Specifications/Special Features:
4K HD Mall wireless wifi 4G LED poster display P3 indoor mall advertising glass LED sign screen

Features:

1. SMD three-in-one technology with high brightness makes the display have a ultra-wide view & vivid image when in use.
2. Work normally without air conditioning for low power consumption.
3. Suitable for outdoor application,big square,shopping malls,railway stations,Airport,stage renting,etc.
4. Ultra light-the lightest can reach 35kg/pcs, can be lifted with one hand, and the installation is fast;
5. Ultra-thin-56mm, which has high strength, toughness, high precision, and is not easy to deform;
6. High precision-the size is electromechanical processing accurate to 0.1mm
7. Compatible-new structure design, meet lifting and stacking requirements, and meet indoor and outdoor requirements;
8. Fast-The cabinet is connected with up and down, left, right, and fast locking mechanism,10 seconds to complete the installation of a cabinet, easy and fast installation;
9. Reliable-high strength and hardness, good heat dissipation effect;
10. Cost-The cabinet is light in weight and requires low installation costs; the cabinet has low power consumption, saving operating costs and reducing labor costs.

Advantages:

1. High refresh rate: With NOVA STAR control system, no scanning line when photographed
2. High gray level: 256 RGB each ,display 16.7M colors ,vivid and perfect video effect
3. High resolution: The most apparent features of the new generation of LED display
4 . Good color uniformity: With  quality LED lamp and high refresh MBI5124 IC.
5. High Brightness: 5000-6500 cd/m2 ,brightness automatically adjusted
6. High Quality: CE, RoHs, FCC, CCC, IP65 passed + 72 Hours serious testing time
7. Long life span: over100,000hours, warranty from 2 to 3 years.
8. You need = We design : Provide Personal- Customized led offer .

Our Services
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
Technology Training:
1. We provide the technology training for free, which contains the operation training

Pixel Pitch:3mm

Led Type : SMD2121

Pixel configuration:1R1G1B

Module Size: 192x192mm

Module Resolution:64x64pixels

LED Chip: Epistar

Cabinet Size:576x1920x56mm

Cabinet Resolution: 192x640 pixels

Module Qty.: 3x10=30pcs

Power Supply: 5V60A 300W

Cabinet Materials: iron and glass

Power &Data socket : Linko

Pixel density: 111111dots/㎡

Brightness: ≥1200 CD/sqm

Refresh rate: ≥1920Hz/s

Scanning Mode:1/32scan

Viewing Angle: H:140°;V:140°

Viewing Distance: ≥3 m

Gray Level: 16 Bit

Power Input: AC110~240V

Power ComsuptionMax: 600W/㎡ Average:240W/㎡

MTBF--hours:>10,000 hours

Life--hours:≥100,000 hours

IP Grade: IP30

Operating Temperature: -35℃~ 65℃

Storage Humidity: 10℃~70℃RH

Control Syetem: Colorlight/Nova/Linsn

Operating System: Windows98/me/2000 /NT/XP

Maintance Access: Back service

Video processor: Colorlight/Novastar/Linsn/VDWALL/RGBLINK

Control mode: computer /USB/smart phone/iPad

Shipping Information:

  • FOB Port:Shenzhen
  •
  • Lead Time:5 - 15 days
  •
  • HTS Code:8528.59.10 90
  •
  • Dimensions per Unit:210 × 78 × 30 Centimeters
  •
  • Weight per Unit:90 Kilograms
  •
  • Units per Export Carton:1
  •
  • Export Carton Dimensions L/W/H:210 × 78 × 30 Centimeters
  •
  • Export Carton Weight:230 Kilograms
