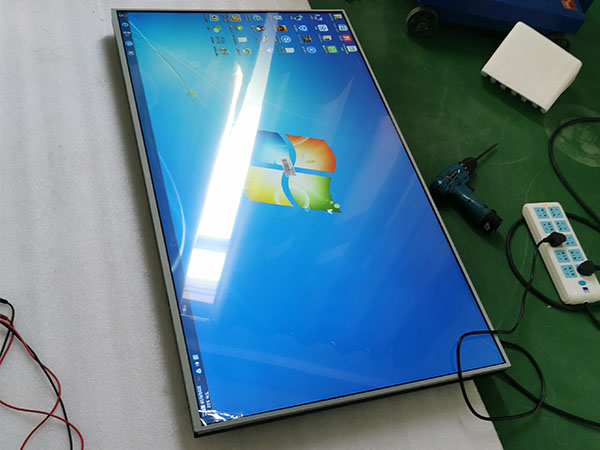

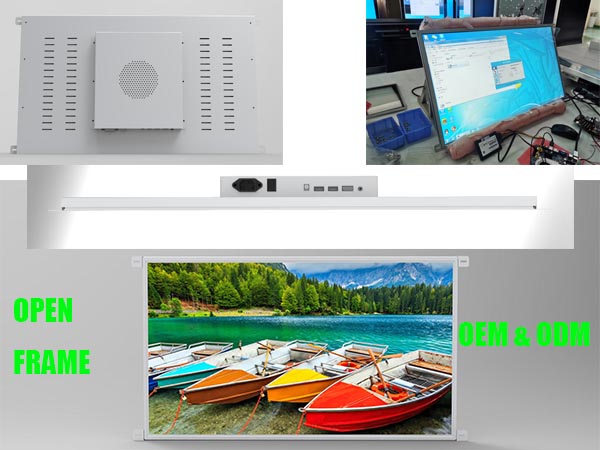

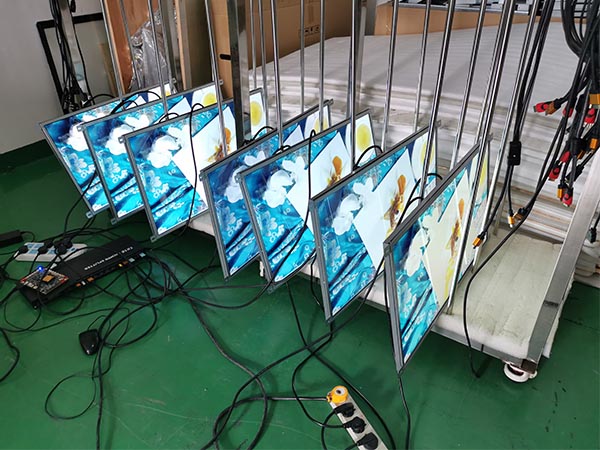

OPEN FRAME LCD MONITOR
OPEN FRAME MONITOR ALL SIZE
DIFFERENT INCH SCREEN
CUSTOMIZED DESIGNS TO FIT FOR CLIENTS‘ CABINET
FOR CASINO GAME MACHINES
FOR TOUCH OR NON TOUCH SCREENS
FHD OR ULTRA HD DISPLAY
HDMI OR DP PORT
CAN ADD USB PORT FOR FIRMWARE UPDATE BY USB

OPEN FRAME LCD MONITOR
OPEN FRAME MONITOR ALL SIZE
DIFFERENT INCH SCREEN
CUSTOMIZED DESIGNS TO FIT FOR CLIENTS‘ CABINET
FOR CASINO GAME MACHINES
FOR TOUCH OR NON TOUCH SCREENS
FHD OR ULTRA HD DISPLAY
HDMI OR DP PORT
CAN ADD USB PORT FOR FIRMWARE UPDATE BY USB

18.5" 21.5" 27" 32" 43" 49" 55" 65" 75" 86" 98"  monitor QLED backlights
Name		32" monitor QLED backlights
Panel parameter (refer the specification of panel)	Size	32"
	Display area	698.4(H) x 392.85(V)
	Brand	AUO--Model Name: P320HVN05.0
	Resolution	1920*1080
	Brightness	WITH QLED BACKLIGHTS
	Color	16.7M
	Aspect ratio	16:09
	Response time	6.5 S

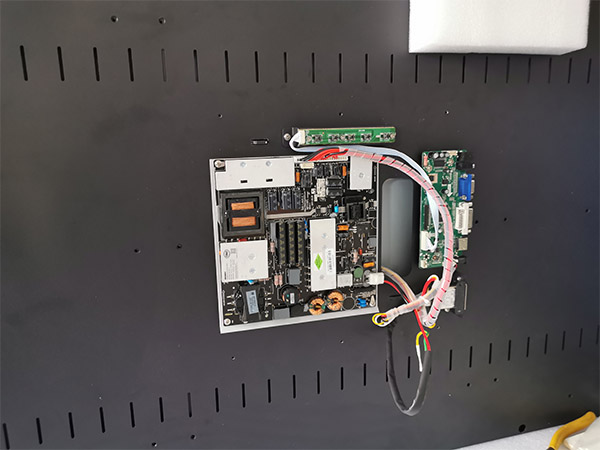

DRIVING BOARD, AS SPECIFICATION		JRY-F9UHD-CV1
DRIVING BOARD, AS SPECIFICATION		MST9104Q1，a total chip SOC that for LCD monitors with panel resolutions up to 1920X1080@144Hz.
IO connectors		Integrated 3 Combo Digital Ports (Supports DVI/ HDMI /DP); Built-in LVDS transmitter, supports up to 1920X1080@144 LCD Panel.One HDMI 1.4 inputs port.One HDMI inputs port.One DP1.2 inputs port,
Environment		Operating Temperature :0°C to 40°C Storage Temperature :-20°C to 60°C Humidity:20%-80% RH at 40°C,
System Power Supply		AC 110V~240V,50/60HZ  (MODEL: MP118)
Power cord		Yes
TFT panel grade		Imported new panel
Case		Open Cell as designed
Package		Inner 4CM PE foam,Middle export carton box,Outer export wooden box

Shenzhen TOPADKIOSK is highly specialized in the field of LCD Digital Signage products, LCD DISPLAY, QLED display, OLED display. We have developed our own LCD products Series, such as face recognition terminal with temperature sensor for access control system, safe temperature kiosk, thermal scanner, digital signage, all In One PC, touch screen, lcd video wall, outdoor IP67 High Brightness LCD Digital Signage and TV, etc, the size is available with 7" Inch to 98 Inch etc. These products have been widely used in the USA, Europe, Southeast Asia, the Middle East, Africa and other countries and regions. These products are suitable for advertising in lots of areas, such as buildings, shops, hotels, supermarkets, railway stations, bus stations, airports, taxis, buses and other outdoor areas. Quality and Service is Our Symbol.The most important factor for us to win our customers‘ hearts and found the long-term business relationships with our customers is quality and service. With these years‘ research, development and manufacture, we have accumulated our special experience and methods to control the quality through the whole process of designing, material purchasing, manufacturing and marketing. Especially for the material quality, we have founded firm relationships with our suppliers and even invested in some supply companies to directly control quality. We offer 7*24 hours service to all our clients. Our sales person and after-selfteam will keep on line to answer and solve all questions for you. Providing services beyond our customers‘ expectations is our purpose. Our excellent pre-sales services and after-sales services have earned us many customers‘ hearts. Customized designs are most welcome! Our advantage is to give solution to our clients according to their needs.
