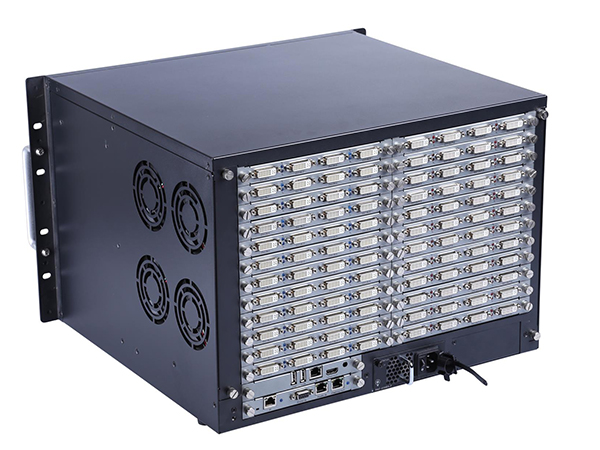

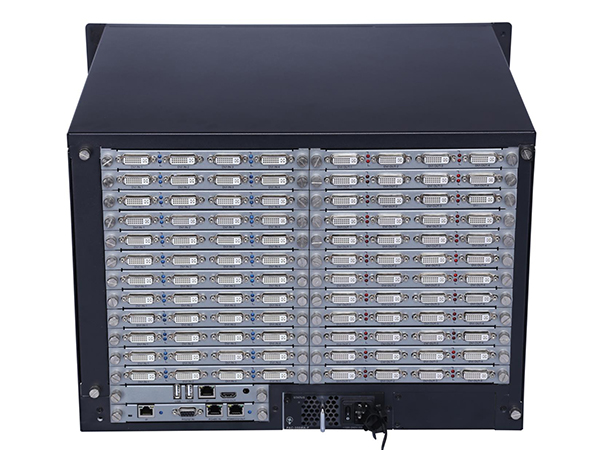

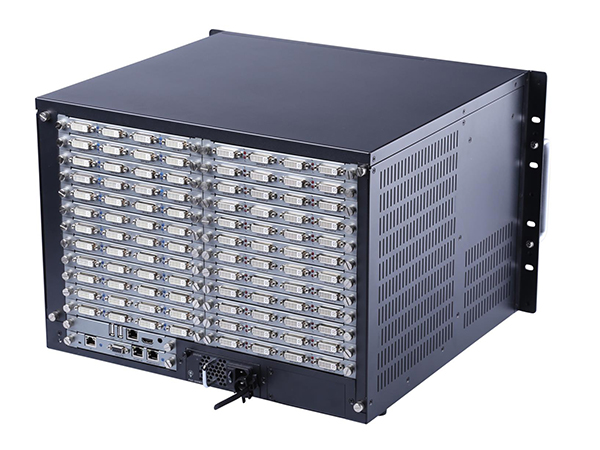

Product name：LARGE screen processor
Product number：TPK-LCDVWP-001
Detailed description
Product parameters
LCD VIDEO WALL LARGE SCREEN PROCESSOR WITH hdmi,VGA,DVI,DP INPUT AND OUTPUT
Multi-Screen Splicing Processor Manual
-Multi-Screen processor
US-2000 series multi-screen processor is the second generation of products, US-2000 series are divided into two series-US-2000 Plus and US-2000 Mini. It has the rich media access and strong video processing ability; It has been completely beyond the embedded hardware architecture and PC architecture processor. It ‘s a new fusion architecture Multi-screen processor, has incomparable advantage of traditional processor, support the narrow edge LCD, DLP plasma display terminal, various splicing. Single one support 192 standard definition standard definition standard definition standard definition signal or the 24 HD definition signal access, support 32 screen; Widely used in government, fire, public security, energy, transportation, electric power, military and other industries the security field, With 7*24 hours all-weather ability to adapt to the environment.
Function characteristics
Video processing ability
> A variety of flexible window, full range of all window arbitrary roaming, zooming superposition, scaling, no windows location, size, proportion limit.
>The biggest single screen window number 48, all the window screen in real time without losing frame display.
>No restriction on the number of the window stack layer, user experience unlimited sense.
>Without external matrix, support all the window full screen within an arbitrary superposition of roaming, no regional and hierarchical constraints.
>Ultra HD static Background image to support a variety of image formats, support for multi window static layout, fast replacement is simple, let the big screen map more blew.
>Ultra HD rolling Caption , font, color, size, rolling speed and direction, the background color, transparency, and can flexibly select.
>Support the monitoring sub screen synchronization display, can be set in one or more display unit synchronous display the main wall splicing picture.
>Independent intellectual property rights of adaptive deinterlacing, scaling, OSD technology, the screen clear and smooth.
Characteristic value function
>The output port mapping technology, 10 seconds to complete the port mapping set, equipment and display the connection wire between unit no one to one corresponding, to ensure that the connection can be effectively, greatly simplify the installation procedure and shorten the installation time.
>Support multi-level flexible user control: the machine control mode, third party PC client control mode, WEB browser control scene change through the internet.
>Support single, four, six, nine, sixteen-image intelligent segmentation template, easily complete the complex window layout.
>Scene plan set number of unrestricted (more than 256), easy manual, automatic plan smooth fast switching.
>Support matrix linkage control, serial port support large screen switch machine.
>Support multi machine cascade, single user operating interface.
>Screen calendar function, unique accurate utility.
>Dongle control function, Allowing users to easily control product limit
>Support for third-party users‘ interface, secondary development of user-friendly.
>Support display of RGB information from Lan based station .
>Support multi kinds signal inputs and output .HDMI ,DVI ,VGA inputs and outputs
> 2 RJ45 network port ,to receive network signals from CCTV system or other lan based system to be displayed on screen .with extra two slot for furture expansion .
The video wall processor offers a new level of images rendering power, high resolution, and percept to a new market standard. Unlike other systems available in the market, the processor is able to customize to fit the latest technologies available. One machine with new architecture, built the virtual screen control system, simplify the system network, easy to use. Designed for critical operations where downtime is never an option. Applications: Command and control centre, large displays, security monitoring and stations.
Multi-video processor:
Multi-Screen Splicing Processor Manual
-Multi-Screen processor
US-2000 series multi-screen processor is the second generation of products, US-2000 series are divided into two series-US-2000 Plus and US-2000 Mini. It has the rich media access and strong video processing ability; It has been completely beyond the embedded hardware architecture and PC architecture processor. It ‘s a new fusion architecture Multi-screen processor, has incomparable advantage of traditional processor, support the narrow edge LCD, DLP plasma display terminal, various splicing. Single one support 192 standard definition standard definition standard definition standard definition signal or the 24 HD definition signal access, support 32 screen; Widely used in government, fire, public security, energy, transportation, electric power, military and other industries the security field, With 7*24 hours all-weather ability to adapt to the environment.
Function characteristics
Video processing ability
> A variety of flexible window, full range of all window arbitrary roaming, zooming superposition, scaling, no windows location, size, proportion limit.
>The biggest single screen window number 48, all the window screen in real time without losing frame display.
>No restriction on the number of the window stack layer, user experience unlimited sense.
>Without external matrix, support all the window full screen within an arbitrary superposition of roaming, no regional and hierarchical constraints.
>Ultra HD static Background image to support a variety of image formats, support for multi window static layout, fast replacement is simple, let the big screen map more blew.
>Ultra HD rolling Caption , font, color, size, rolling speed and direction, the background color, transparency, and can flexibly select.
>Support the monitoring sub screen synchronization display, can be set in one or more display unit synchronous display the main wall splicing picture.
>Independent intellectual property rights of adaptive deinterlacing, scaling, OSD technology, the screen clear and smooth.
Characteristic value function
>The output port mapping technology, 10 seconds to complete the port mapping set, equipment and display the connection wire between unit no one to one corresponding, to ensure that the connection can be effectively, greatly simplify the installation procedure and shorten the installation time.
>Support multi-level flexible user control: the machine control mode, third party PC client control mode, WEB browser control scene change through the internet.
>Support single, four, six, nine, sixteen-image intelligent segmentation template, easily complete the complex window layout.
>Scene plan set number of unrestricted (more than 256), easy manual, automatic plan smooth fast switching.
>Support matrix linkage control, serial port support large screen switch machine.
>Support multi machine cascade, single user operating interface.
>Screen calendar function, unique accurate utility.
>Dongle control function, Allowing users to easily control product limit
>Support for third-party users‘ interface, secondary development of user-friendly.
>Support display of RGB information from Lan based station .
>Support multi kinds signal inputs and output .HDMI ,DVI ,VGA inputs and outputs
> 2 RJ45 network port ,to receive network signals from CCTV system or other lan based system to be displayed on screen .with extra two slot for furture expansion .
| Project | Type | Model | US-2000 PLUS |
| The scale of equipment | Splicing scale | Mosaic screen number | A maximum of 32 Road |
| Collection scale | HD collection | A maximum of 24 Road | |
| SD collection | A maximum of 192 Road | ||
| The machine configuration | The main control unit | Processor | Intel Celeron processor |
| Memory | 4G DDR3 1600 | ||
| Hard disk | 8G MSATA hard disk | ||
| operating system | Windows XP/ windows 7/8 | ||
| The network interface | 4,10M/100M/1000M Adaptive network port | ||
| RS232 Port 9pin | 1 | ||
| USB | 2 USB2.0,2 USB 3.0 | ||
| Display interface | 1 VGA , 1 HDMI | ||
| Chassis configuration | Chassis height | 12U total 40 slot | |
| Input card | 36(hdmi ,vga .dvi each 6cards ) +1 RJ45 | ||
| Output card | 3cards (HDMI ,DVI ,VGA ) | ||
| Processing capacity | The signal output | DVI HDMI VGA Each 2 ports | support 800*600,1024*768,1280*720,1366*768,1920*1080 |
| Signal input | DVI*24 | DVI-D interface,support 800*600~1920*1080P,Adaptive | |
| VGA*24 | DB-15M Analog interface,support 800*600~1920*1080P,Adaptive | ||
| HDMI*24 | SD/HD-SDI SMPTE 259M/292M, support:720P50/60,1080P25/30/50/60 | ||
| RJ45 | 2 Ethernet TCP/ IP Local network connections | ||
| Other | Two slot for expansion | ||
| Other parameters | Power Voltage | 100VAC~240VAC 50/60Hz | |
| Power consumption | <200W | ||
| Working temperature | Working temperature:-30ºC~50ºC | ||
| Operating humidity | Relative humidity: 5% ~ 95% no condensation | ||
| size | Wide 460mm x deep 320mm x high 750mm | ||
| weight | 35Kg | ||
The video wall processor offers a new level of images rendering power, high resolution, and percept to a new market standard. Unlike other systems available in the market, the processor is able to customize to fit the latest technologies available. One machine with new architecture, built the virtual screen control system, simplify the system network, easy to use. Designed for critical operations where downtime is never an option. Applications: Command and control centre, large displays, security monitoring and stations.
Multi-video processor:
-
- Cost effective
- Easy and quick to setup
- Enhanced features and superior video processing capabilities.
- More powerful and feature-rich compared with other processors designed using embedded hardware processor architecture or PC architecture.
- Utilizes a combination of PC + FPGA design:
- PC offers user-friendly and intuitive operation/interaction
- FPGA architecture offers enhanced image processing capabilities while ensuring stability.
- Hot-swappable Modular design:
- Ensures flexible configurations
- Scalability
- Easy maintenance
- Modules can be upgraded easily.
- All-in-one architecture:
- Includes an intuitive virtual panel display control system ensuring simple and easy operation
- Main Functions
- Pure image processing hardware architecture
- Built in default window templates of 1,4,6,9,16 window
- Scrolling text, fonts, color, size customizable
- Built in de-interlacing, image scaling function for input source
- Support 16 windows per single display
- Support 16 windows overlay
- Supports background images replacement
- Supports large screen calendar functions
- Support maximum of 24 (DVI & VGA) input signal
- Support maximum of 192 (CVBS) input signal
- Support maximum of 32 display output
- Support remote access control via Wired LAN or Wireless LAN through router
- Support RS232 control (via 3rd party USB-TO-Serial cable)
- Specification
-
Model: Video wall processor Descriptions: Multi Video Image Processor Input Card: HDMI (via adaptor), DVI, VGA, CVBS Output Card: HDMI (via adaptor), DVI INPUT Resolution: 800x600 (56/60/72/75/85)Hz
1024x768 (60/70/75/85)Hz
1280x1024 (60/75)Hz
1360x768@60Hz
1280x720@50/60Hz
1920x1080i@50/60Hz
1920x1080p@50/60HzOUTPUT Resolution: 800x600@60Hz
1024x768@60Hz
1360x768@60Hz
1400x105060Hz
1280x720@60Hz
1920x1080p@25/30HzBandwidth: 10.2Gbps Control: Software client, Remote LAN (Install with client software) Input voltage: 110---260VAC 50/60Hz Power Consumption <200W Physical Dimension
(WxDxH) in mm:482 x 320 x 225
(6U)
Weight: 20Kg Operating Temperature: -10ºC - 50ºC Storage Temperature: -25ºC- 55ºC
