Product name:Narrow Bezel large lcd video wall screen lcd display
Product number:TPK-LCVW-016

Detailed description Product parameters

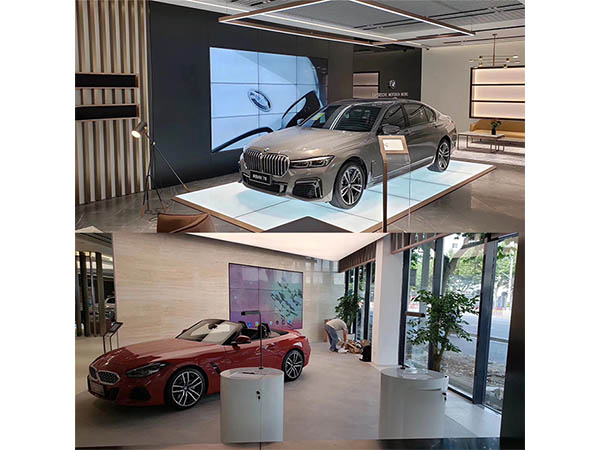

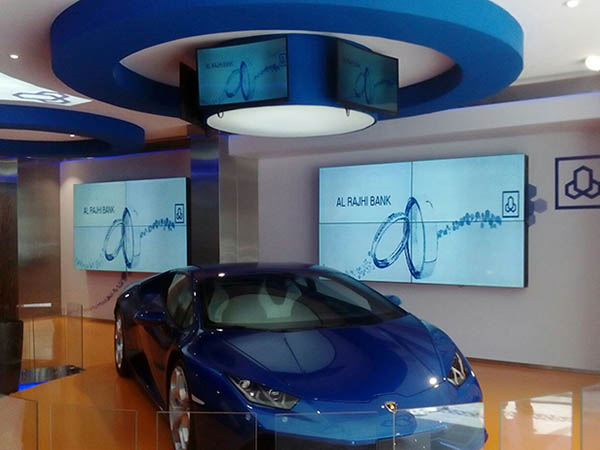

Narrow Bezel LCD VIDEO WALL
LCD Video wall:
Panel: LG, SAMSUNG, AUO/BOE
SAMSUNG, best quality
LG: great quality
BOE/AUO: general quality
Connection way:
1. Using HDMI splitter, stable quality, HDMI resolution.
2. Using DVI looping connection, HDMI resolution.
3. Using DP looping connection, 4K resolution, need signal INPUT and
media resource to be 4k.
4. Can use HDMI matrix for multi-signal input such as PC, camera,etc.
5. Can use large screen processor for signal input, for example:
16 HDMI in, 16 HDMI out, 8 VGA in and 8 VGA out, etc, can be customized.
Can have float windows, picture in picture.

Cables:
HDMI cable, DP cable-if 4k, RJ45 cable, power cables,etc.
Bracket:
1. Normal bracket, can not pop-in and pop-out
2. Pop-in and pop-out bracket, better for future front maintaince
For signal input:
1. Can use media player boxes for input HDMI or 4K signal. Can buy
media player box in local market or buy from us.
2. Can use PC for signal input.
3. Can use camera for signal input with HDMI/SDI output.
4. Matrix
5. Large screen processor
Outer design:
1. Install onto the wall
2. Make as floor standing
3. Floor standing with cabinet below
4. Can make whole unit with frame and cabinet
5. Can make whole unit with floor standing cabinet, frame, can add big tempered glass,
add IR touch frame, make the whole video wall as big touch screen monitor, can also
build in PC or android hardware, make it as Android or PC touch kiosk.
6. Can add motion sensor into this big kiosk, let it have motion sensor function.
7. Can also make curved bracket, to make it as curved video wall.

All of our products series, every design can be made with following function (Both indoor and outdoor):
***USB version AD player: update advertisement by USB (Stand-alone Version)
***Network version advertising player: update advertisement through internet, support both Android OS and
UCOS OS, Windows OS (Network Version)
***PC version kiosk (Infrared / capacitive touch screen optional): same function as computer, compatible with
Windows7,windows8,Windows XP, Linux, Ubantu, Apple etc. (Built-in PC Version, touch screen optional)
Can also be customized with equipments such as printer, scanner, camera, keyboard,motion sensor, WIFI adaptor etc.
***Android Infrared / capacitive touch screen kiosk: Android OS with touch screen. Can also be customized with
equipments such as printer, scanner, camera, keyboard, motion sensor, WIFI adaptor etc.
***LCD, OLED video wall, narrow bezel with HDMI or 4K display
***All kinds of monitors with or W/O touch, 2K or 4K display, open frame, tablets of all size, DP, HDMI, VGA, DVI, USB ports for option
***Transparent LCD, OLED
***Bar type LCD

PRODUCTS:
From Design:
1, Floor standing model (Can be added wheels or no wheels, can be fasten to floor,
can also design according to your idea)
2, Wall mounted screens
3, Hanging screens
4, Horizontal screens
From Function:
1,Monitor with or W/O Touch
2, Digital signage
3, Android touch / Non Touch
4,Windows touch / Non Touch
5,Selfservice terminal: can add camera, printer, scanner, led light, etc.
From Environment:
Indoor and outdoor
Screen Size: 10.1" to 105"
Display: 1920*1080 or 4k 3840*2160
Android: Anvertising screen: RAM 1G, ROM:8G Android OS 4.4.2 5.0 7.1 8.0 9.0 OS
Android Touch for use your own Android Software: RAM 2G/4G,
ROM: 8G/16G/32G for your choice, Android OS: 5.1, 6.0 or above.
PC: CPU: J1900. G1840, I3, I5, I7 optional.
Memory: 2G, 4G, 8G 16G optional.
Hard Disk: 500G HHD, 64G SSD, 120G SSD, 240G SSD opti


LCD Video wall:

Panel: LG, SAMSUNG, AUO/BOE
SAMSUNG, best quality
LG: great quality
BOE/AUO: general quality

Connection way:
1. Using HDMI splitter, stable quality, HDMI resolution.
2. Using DVI looping connection, HDMI resolution.
3. Using DP looping connection, 4K resolution, need signal INPUT and
media resource to be 4k.
4. Can use HDMI matrix for multi-signal input such as PC, camera,etc.
5. Can use large screen processor for signal input, for example:
16 HDMI in, 16 HDMI out, 8 VGA in and 8 VGA out, etc, can be customized.
Can have float windows, picture in picture.

Cables:
HDMI cable, DP cable-if 4k, RJ45 cable, power cables,etc.
Bracket:
1. Normal bracket, can not pop-in and pop-out
2. Pop-in and pop-out bracket, better for future front maintaince
For signal input:
1. Can use media player boxes for input HDMI or 4K signal. Can buy
media player box in local market or buy from us.
2. Can use PC for signal input.
3. Can use camera for signal input with HDMI/SDI output.
4. Matrix
5. Large screen processor
Outer design:
1. Install onto the wall
2. Make as floor standing
3. Floor standing with cabinet below
4. Can make whole unit with frame and cabinet
5. Can make whole unit with floor standing cabinet, frame, can add big tempered glass,
add IR touch frame, make the whole video wall as big touch screen monitor, can also
build in PC or android hardware, make it as Android or PC touch kiosk.
6. Can add motion sensor into this big kiosk, let it have motion sensor function.
7. Can also make curved bracket, to make it as curved video wall.


Product Specs:
Android version

Panel
Details
Panel Brand Samsung/LG
Android CPU Quad-Core / Octa-Core
RAM 2GB/4GB
ROM ( internal memory ) 8GB/16GB
OS Android 5.1 or above
Decoding
Formats
Video Format MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,H.264,MOV,WMV,RM,RMVB,etc.
FHD 1080P Video YES
Picture Format JPG, BMP,PNG,etc.
Text TXT
Audio Format MP3,WAV
Interface HDMI Output 1 ( Quad-Core version )
SD/ TF card slot 1
USB 1
RJ45 1
Network Wifi available
3G/4G optional
Ethernet available
Touch screen option 1 IR touch ( 10 points )
option 2 capacitive touch (10 points )
Speakers Speakers 2 x 5W stereo speakers
remote control software optional

Features
1.Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc.
2. Outer shell is made of extra good quality metal material and tempered glass.
3.This machine is of android OS design, which could be connected to internet,and supports remote office cotrol .
4.Remotely report system utilization and memory usage.
5.Content plays automatically upon set up of schedule.
6.Control, monitor and design screen layouts remotely by the remote control office.
7.Color for metal outer frame is available with Black color, Shinning-silver color, Golden Color, cream-white color; Color Is Optional.
8.APPs are available on Google Play and APP Store
9.Easy connection to wifi.

PC version

Panel Details Panel Brand Samsung/LG/AUTO/ LCD/LED/Chimee
Mini-PC CPU i3, i5, i7
RAM 4GB/8GB
ROM 500GB HDD or 64/120/240GB SSD
OS Windows OS or Linux OS
Interface HDMI Output 1
USB 4
RJ45 2
Network Wifi support
3G support
Ethernet support
Touch screen option 1 IR touch ( 10-16 points )
option 2 capacitive touch (10 points )
Speakers Speakers 2 x 2W or 2 x 5W stereo speakers
remore control software optional
Features
1.Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc.
2. Outer shell is made of extra good quality metal material and tempered glass.
3.This machine is with mini PC built in, customers can install Windows or Linux freely. Or let us install OS before shipment.

4.Easy connection to Internet.
