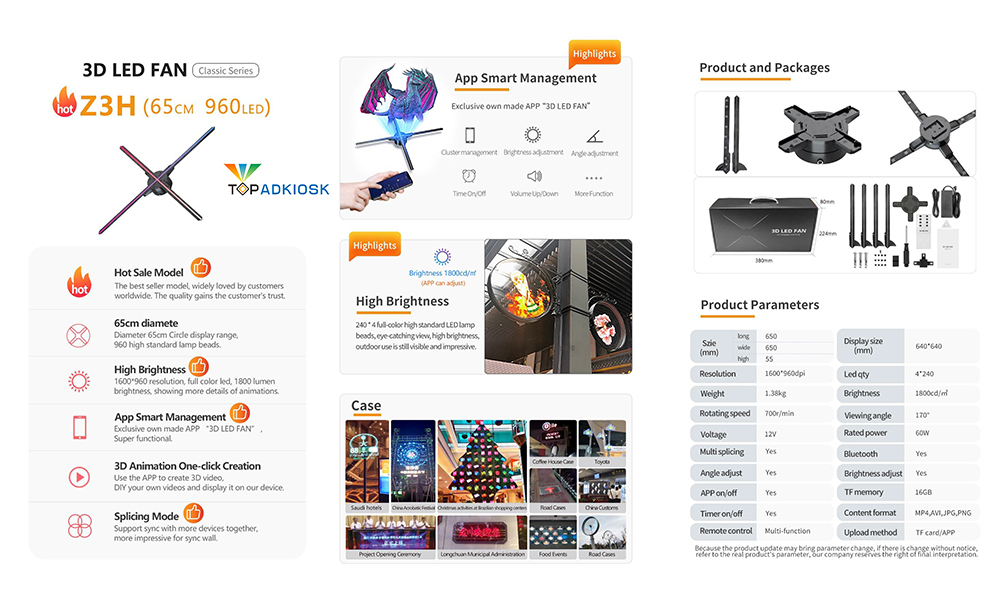

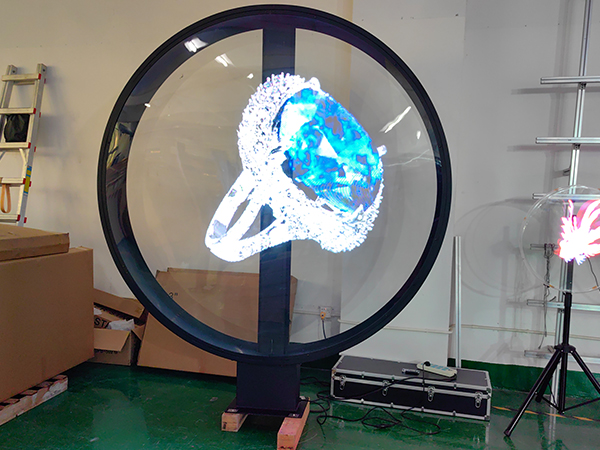

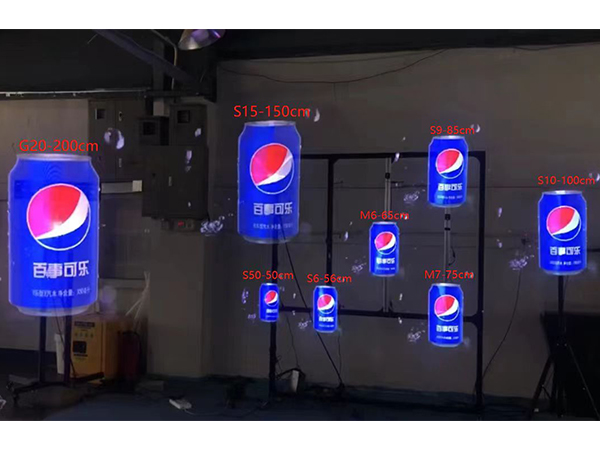

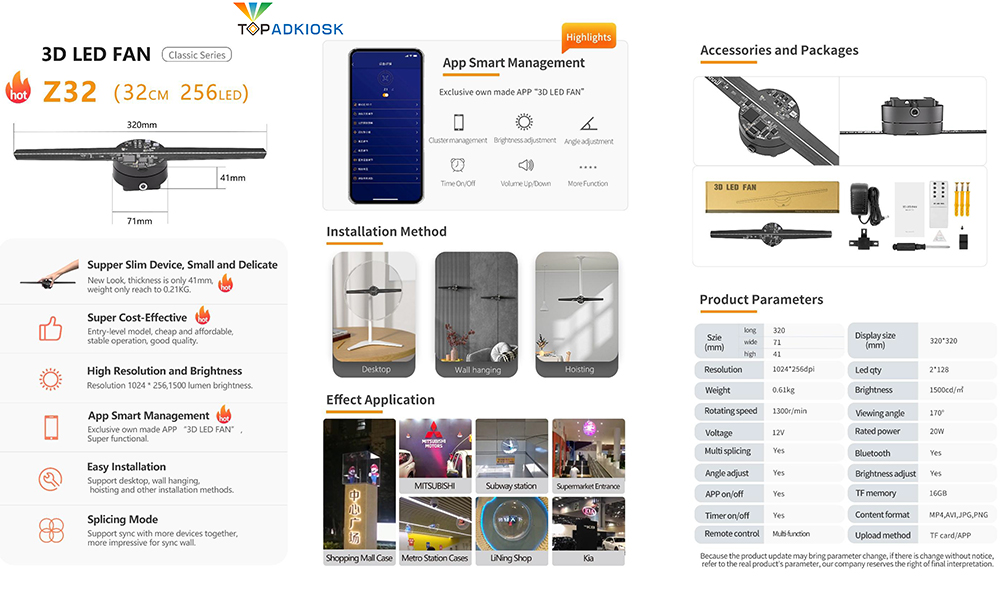

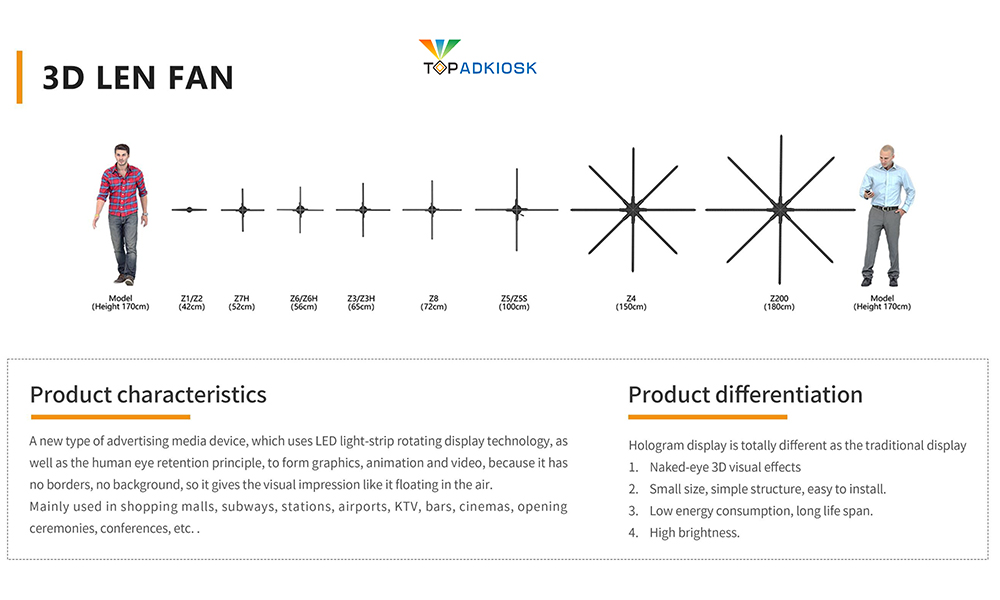

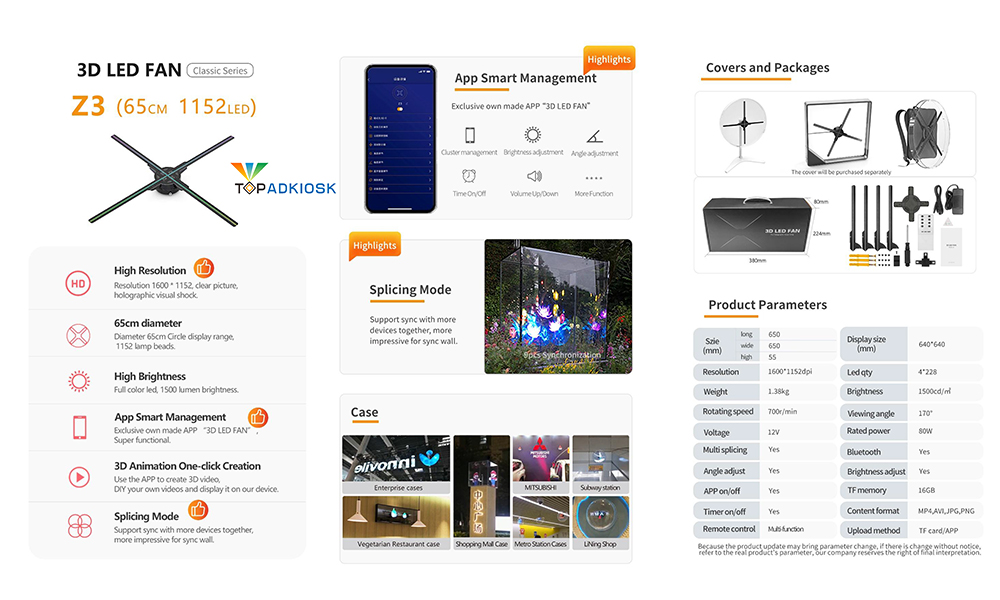

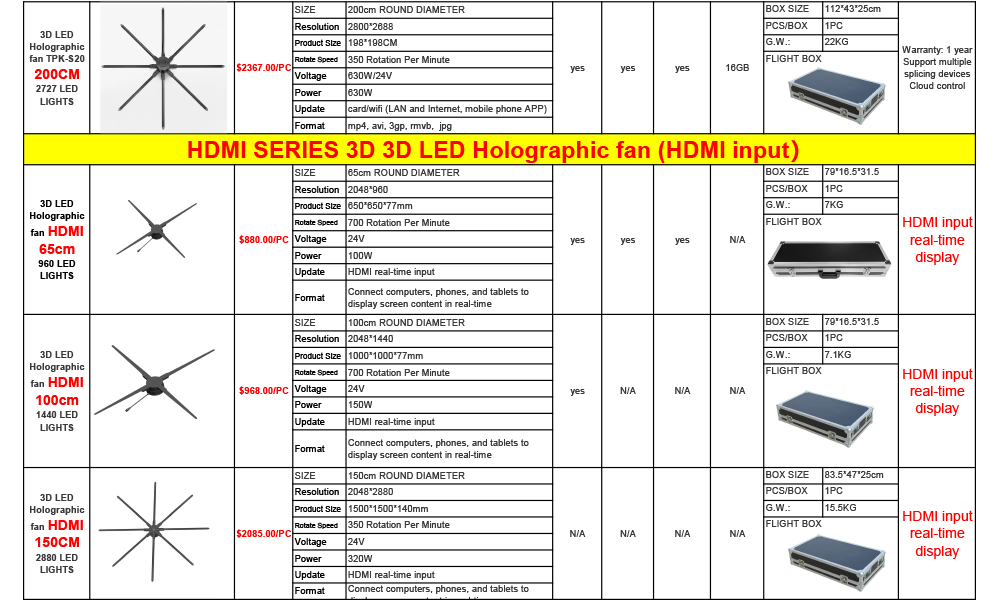

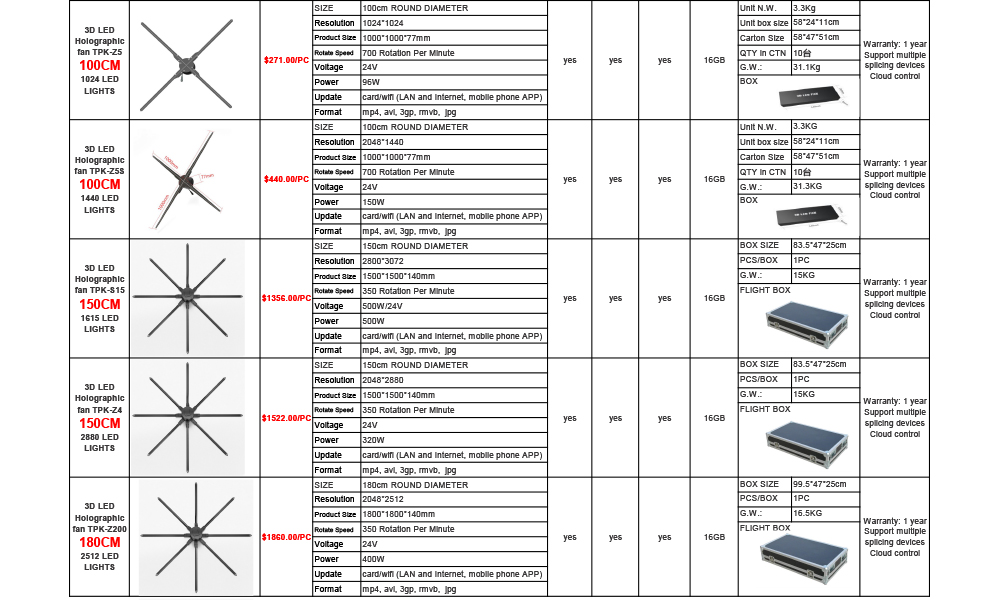

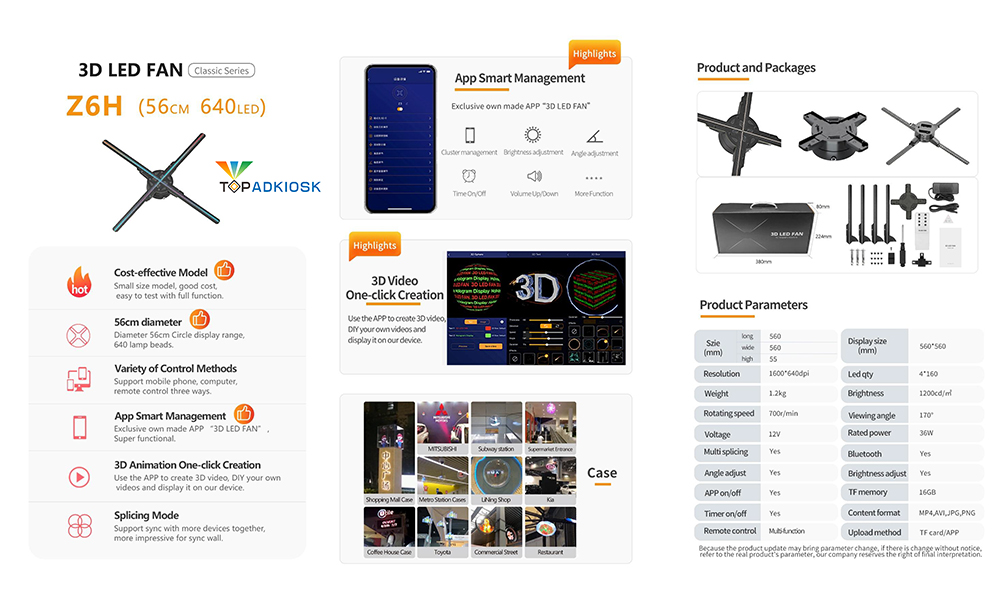

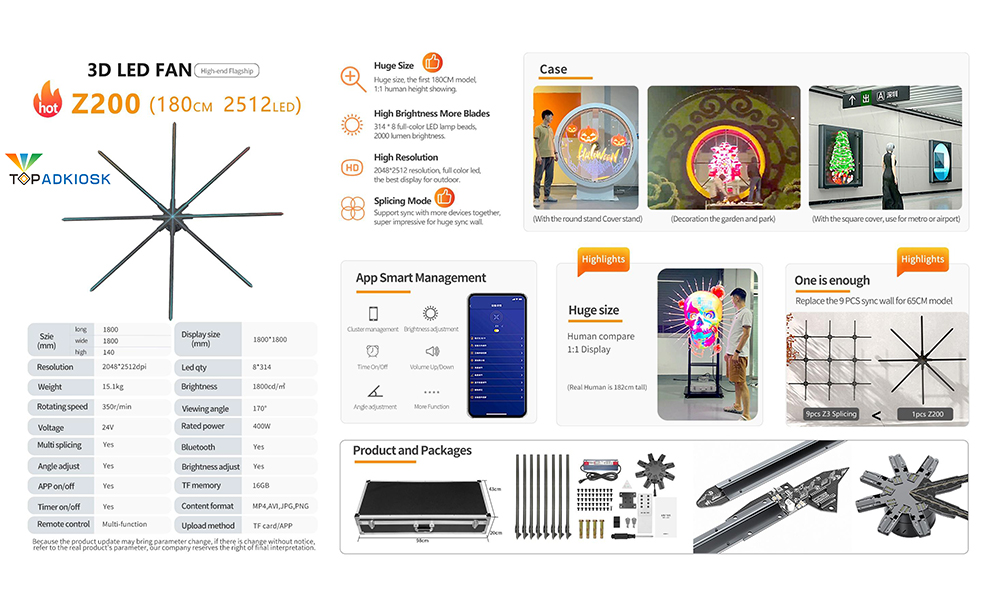

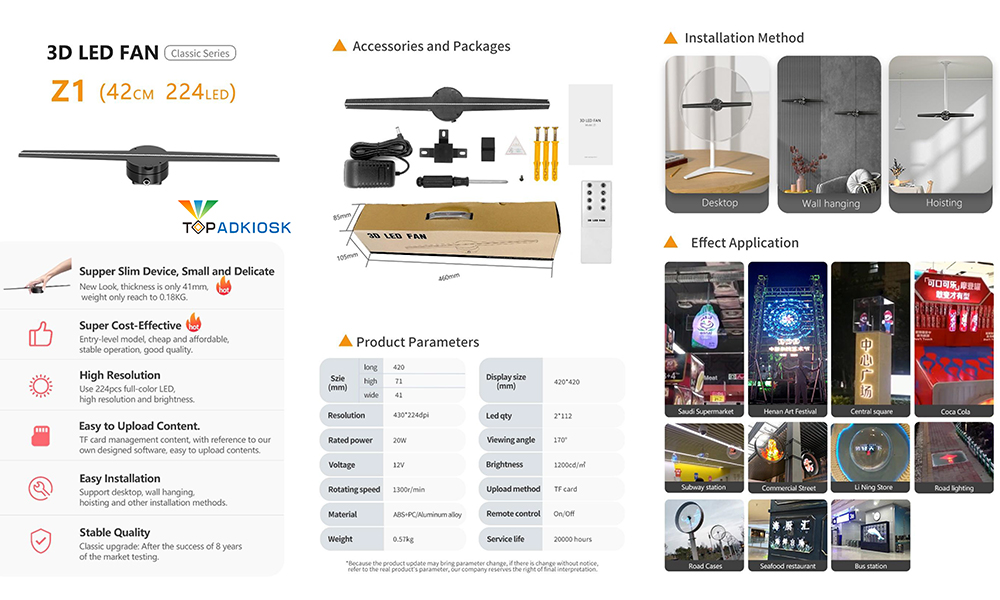

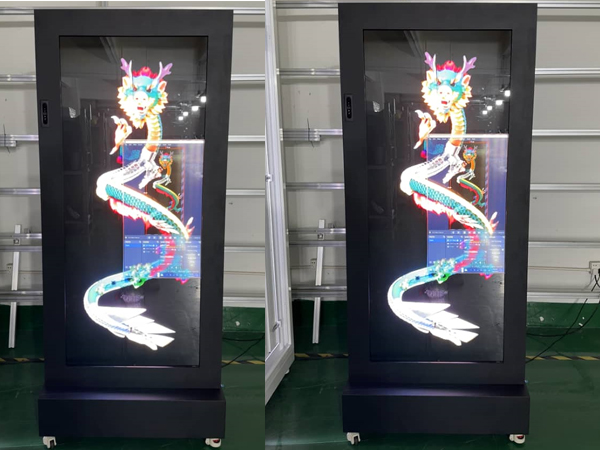

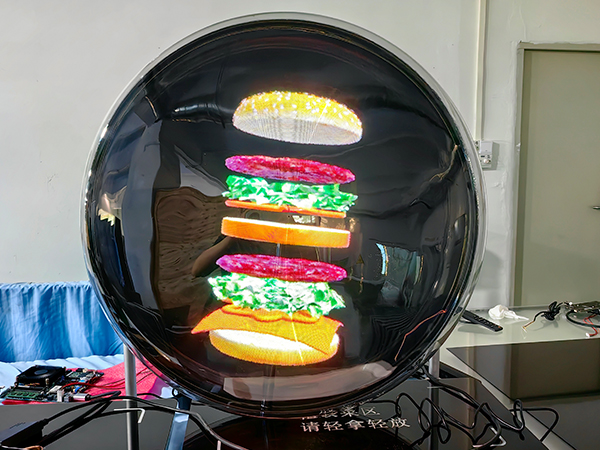

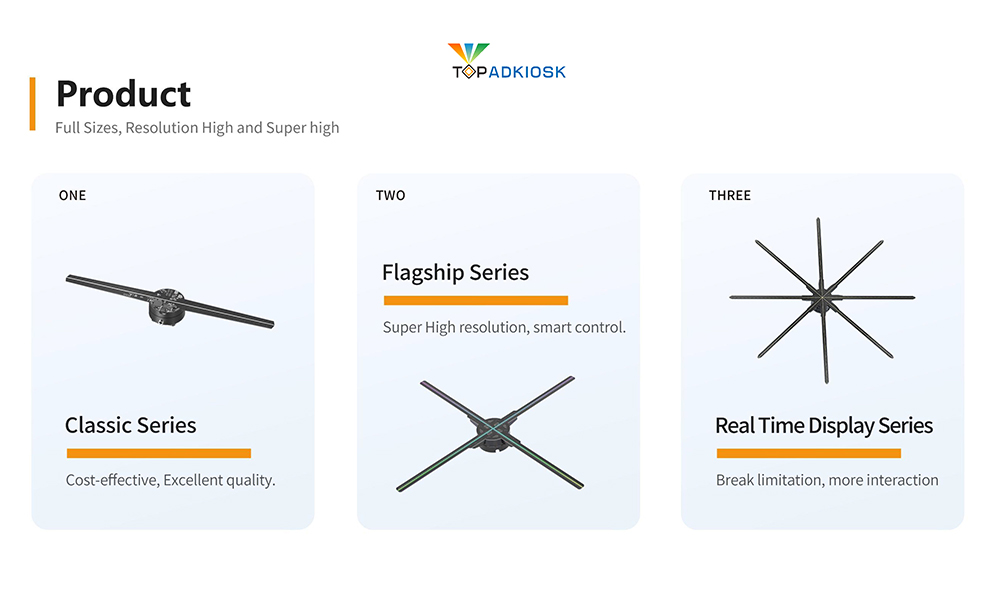

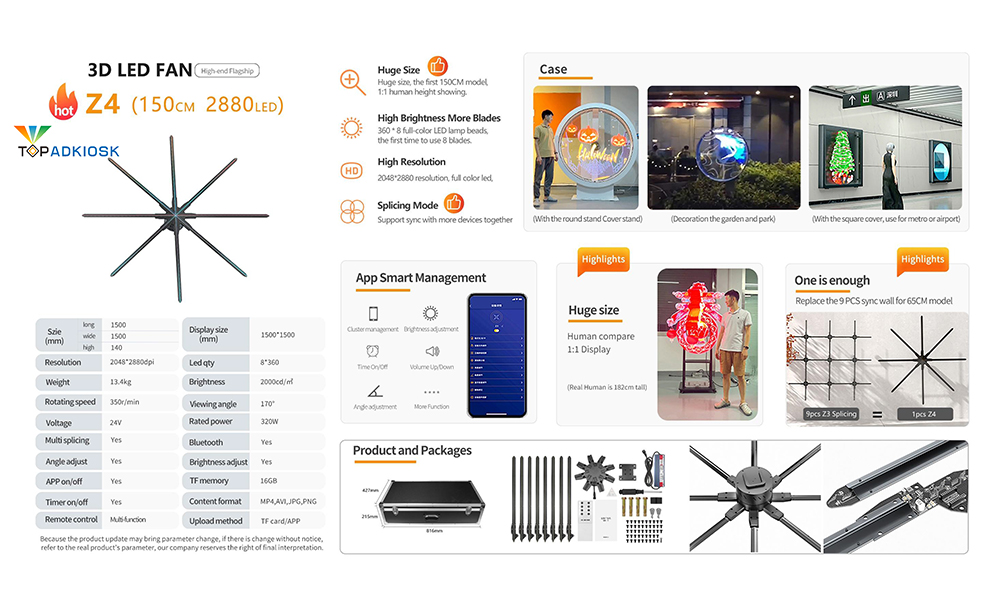

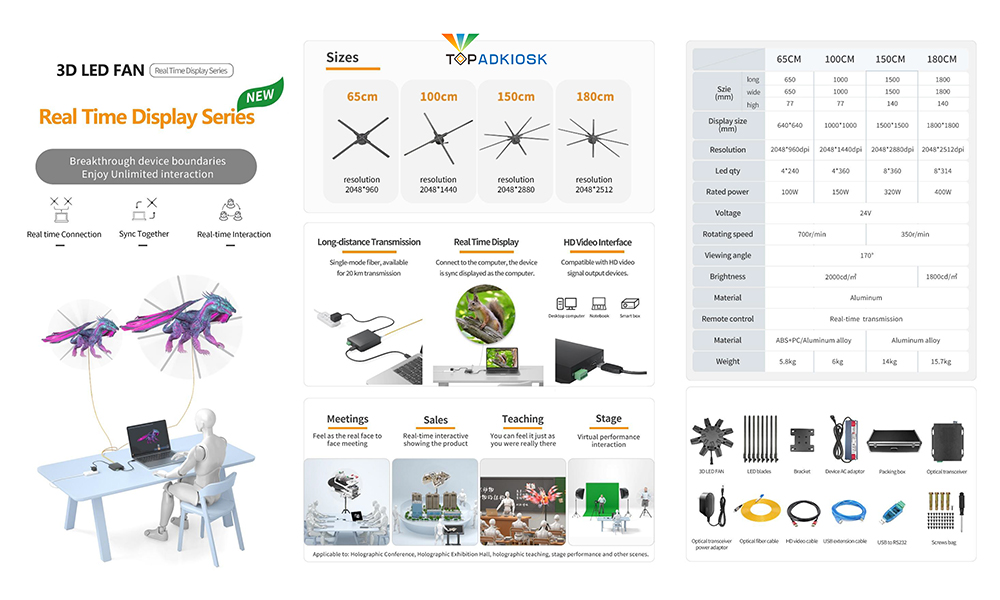

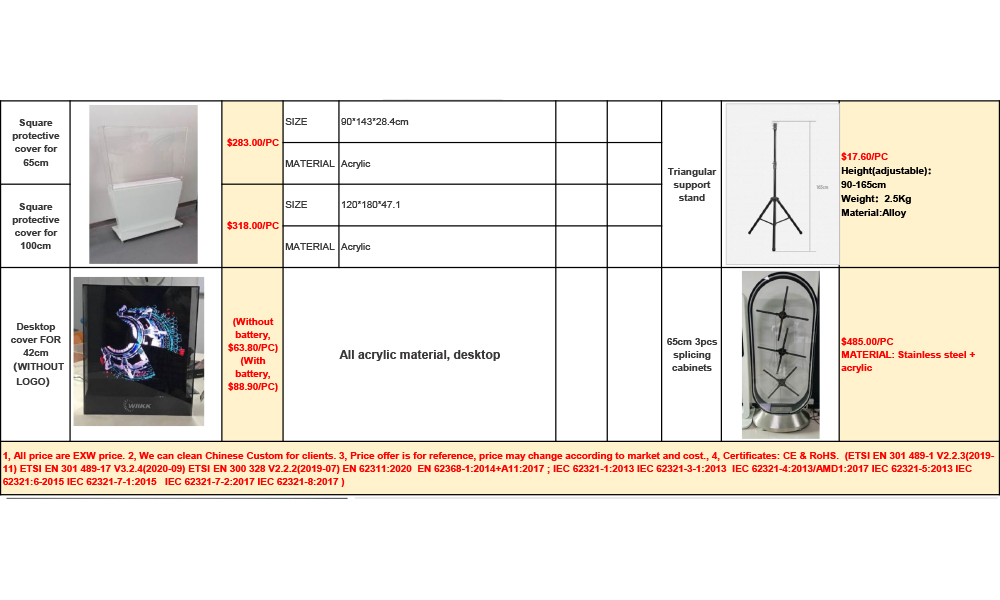

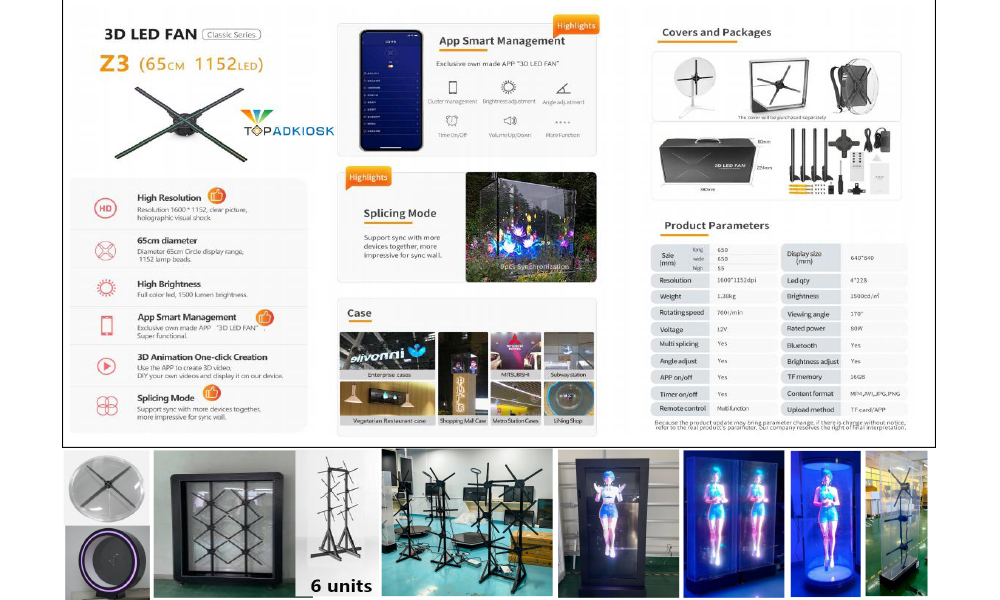

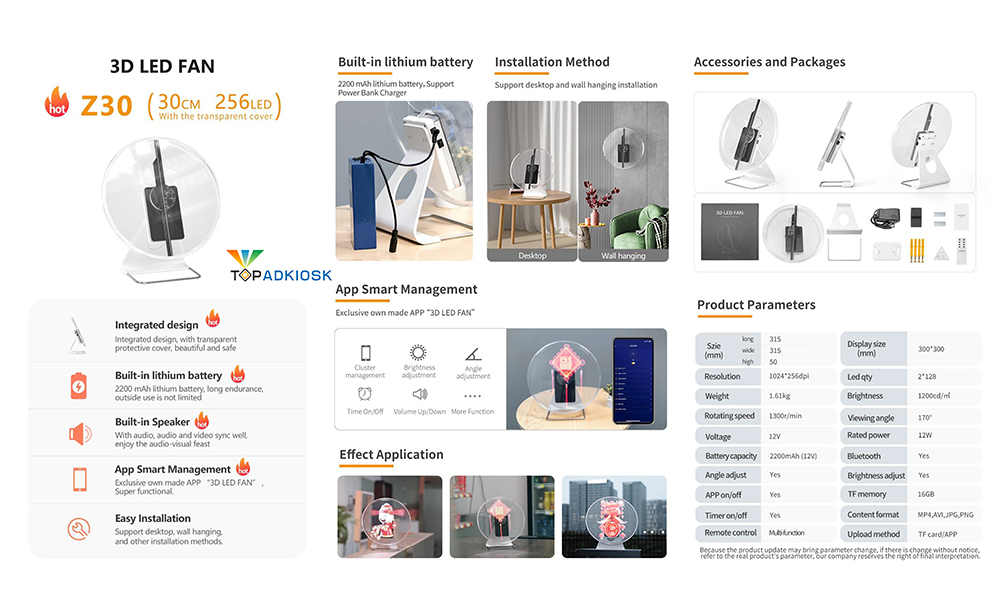

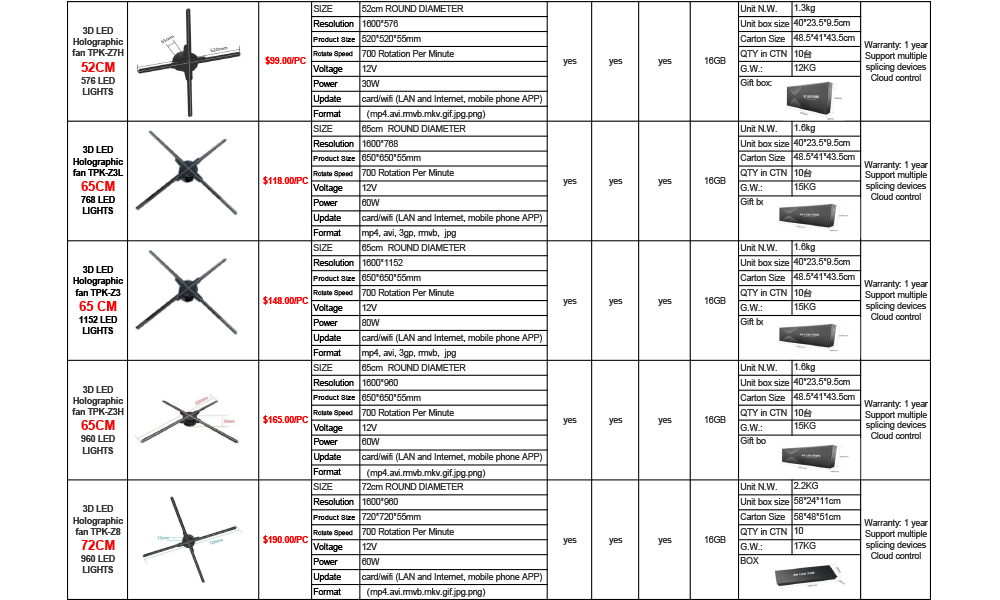

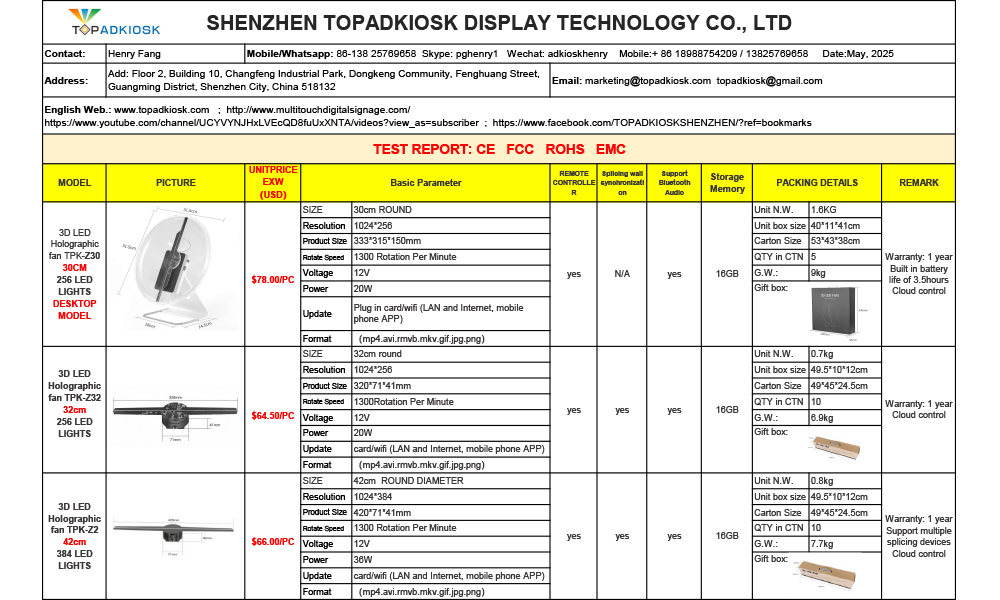

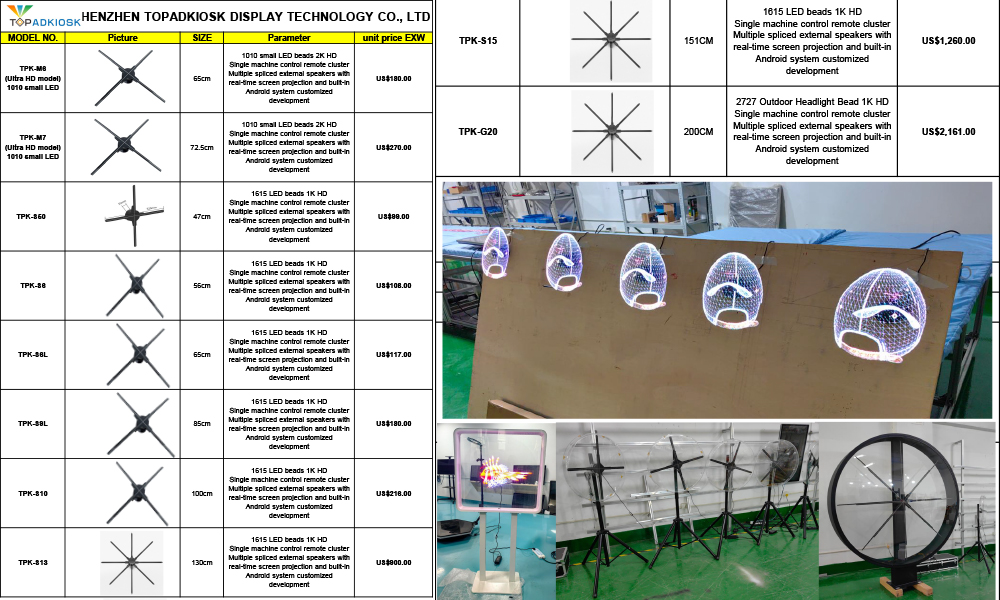

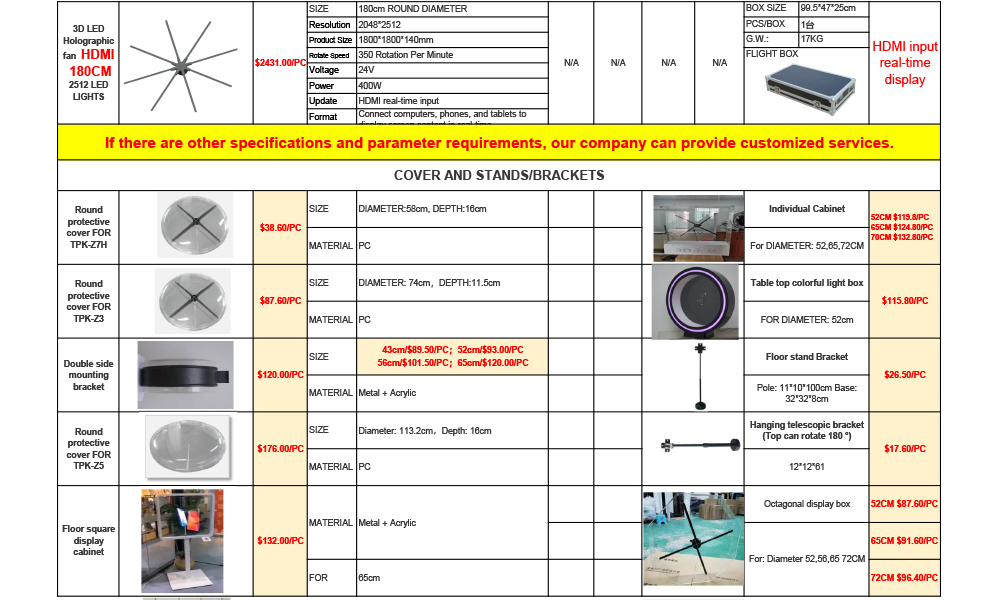

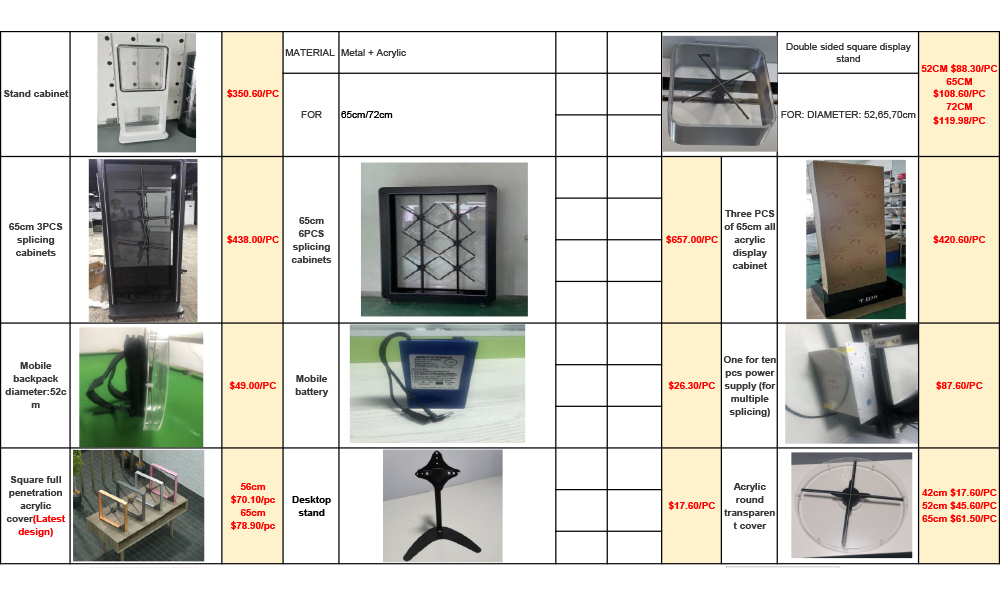

HOLOGRAM 3D LED FAN AVAILABLE SIZE: 5 30 32 42 43 50 57 65 75 80 90 100 150 180 200CM
Video reference:
https://www.youtube.com/shorts/wqz0WuppnuA
https://www.youtube.com/shorts/KpATnQg2iwU
https://www.youtube.com/shorts/3Gxvp07gvHo
https://www.youtube.com/shorts/FRmk3Rw9NtE

Attention:

Installation for Single Device (Model #M6, S7，X4) :

1. The holographic advertising fan must be installed firmly and fixed screws should be made.

2. Before start-up, Please clear the items within the rotating range of the fan before starting and check whether the blades will be hit during splicing.

3. Do not try to touch the equipment with your hands during operation

4. This product is composed of high-density components. It is forbidden for users to disassemble, repair, refit or fall heavily, which will cause damage to the fan on one side.

5. The normal working temperature of the equipment is - 30 ° C ~ 60 ° C. if the ambient temperature is too low or too high, please use the fan carefully

6. Please do not use sharp objects to scratch the surface of the fan

7. If there is dust, stain or water drop on the surface of the fan, please wipe it with a soft dry cloth.

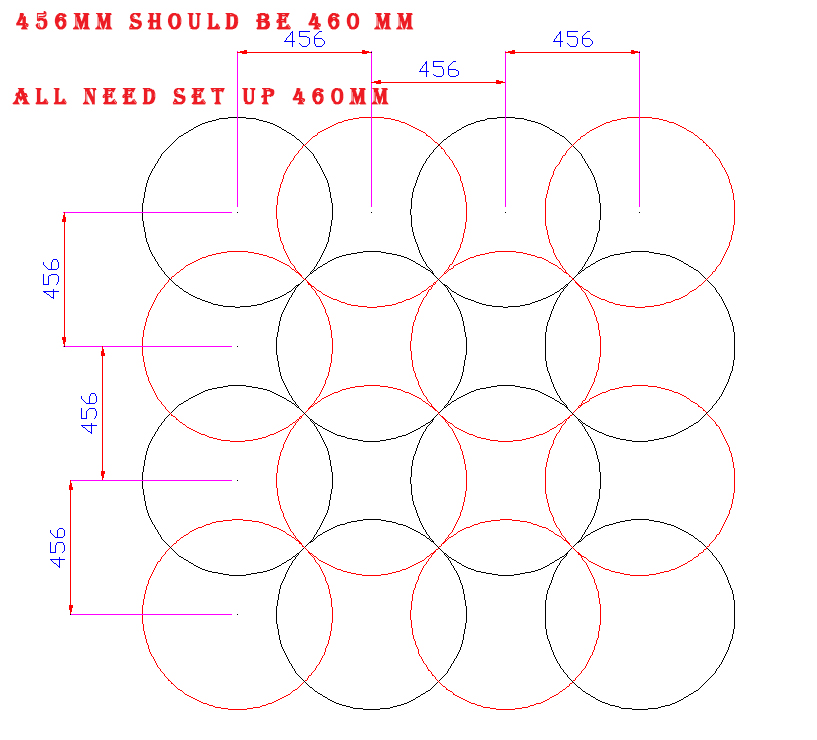

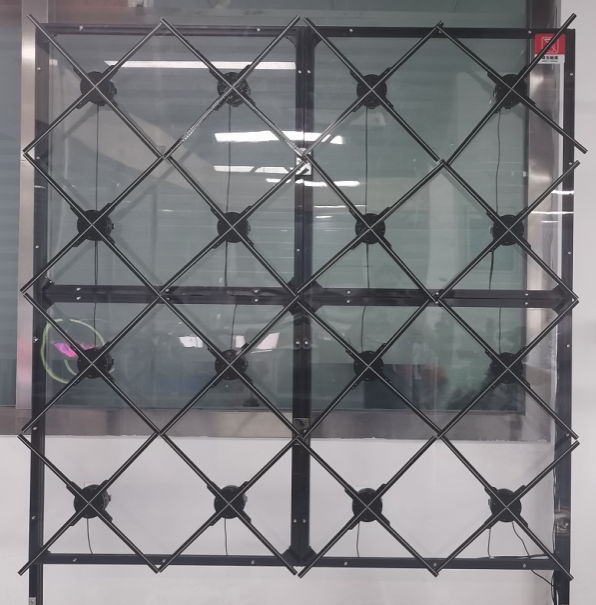

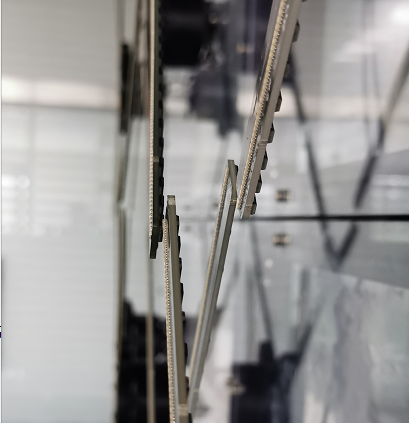

Splicing Installation (Model #X4 Only)

1.There are two kinds of fan cushion blocks, one is 35mm thick, the second is 5mm thick. The two kinds of cushion blocks are installed cross each other.

2. The wiring behind the splice frame needs to be bound to the back of the bracket to prevent the blade from hitting.

3. Before the equipment is powered on, it is necessary to manually rotate all fans to check whether it will hit, whether the support is unstable, and whether there is at least one finger gap (20mm) between the intersecting blades.

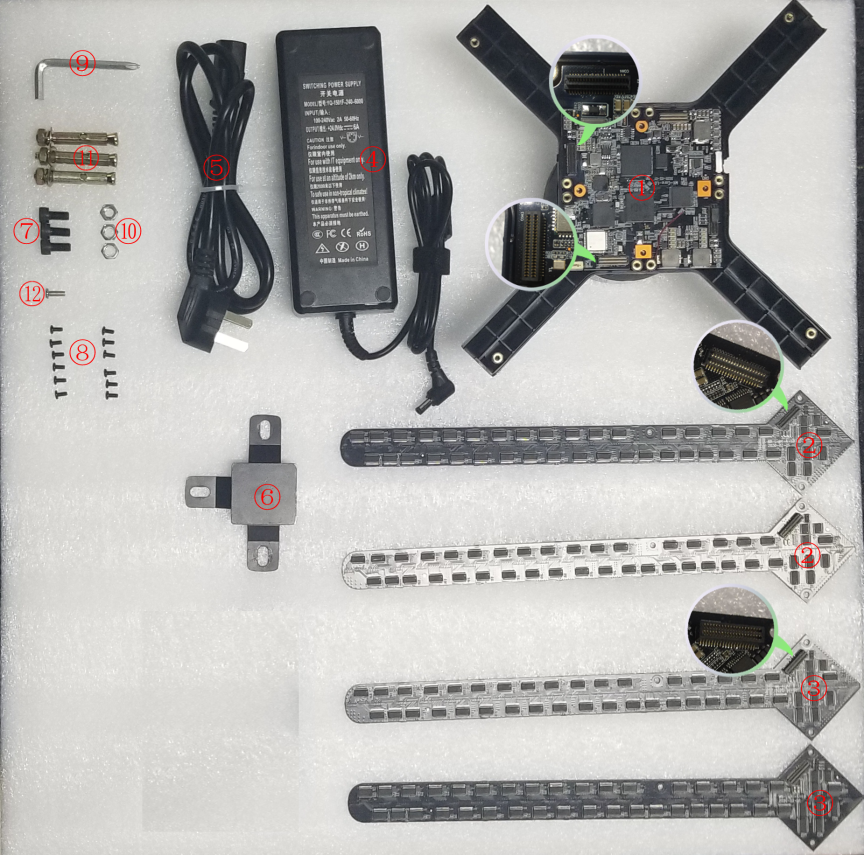

Package List

①　Fan Heads(1)

②　Blades-A (2)

③　Blades-B (2)

④　Adapter -24V 6A (1)

⑤　Power Cable (1)

⑥　Triangle plate (1)

⑦　Hexagon socket set screw(3)

⑧　M3 * 6 lamp panel screw(12)

⑨　bolt driver(1)

⑩　Hexagon screw cap (3)

⑪　Fixing expansion screw with wall(3)

⑫　M4 * 10 equipment fixing screw(1)

Upload Instruction

1. Stand Alone

Advantages: simple operation, mobile phone directly connected to the device, no need to use the Internet

Disadvantages: can not remote transmission, can not cluster one key upload to multiple devices

Upload method: app (Apple & Android)

2. Network:

Advantages: it can be transmitted remotely and can be distributed to multiple devices with one key cluster

Disadvantages: both devices and mobile phones need to be connected to the Internet and distributed and controlled by the cloud

Upload method: app (Apple & Android), computer Web terminal

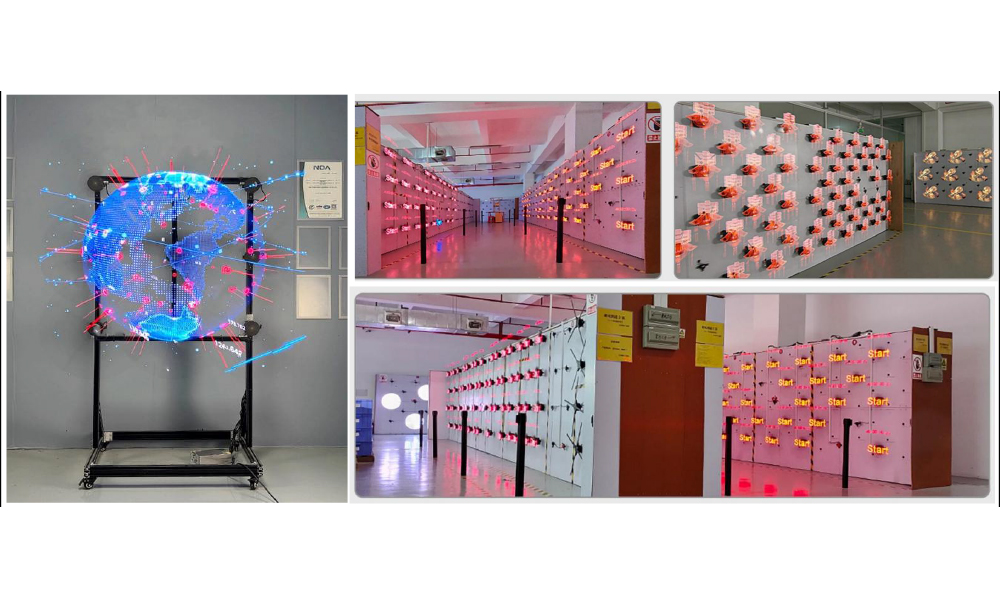

3.  Splicing  (NOT Supported it at Model #M6 & #S7)

Advantages: the display screen size of a single device is limited. Multiple devices are spliced together to form a large screen display. At the same time, it supports the splicing of LAN and remote cloud

Disadvantages: installation and debugging are a little complicated

Upload method: Windows PC

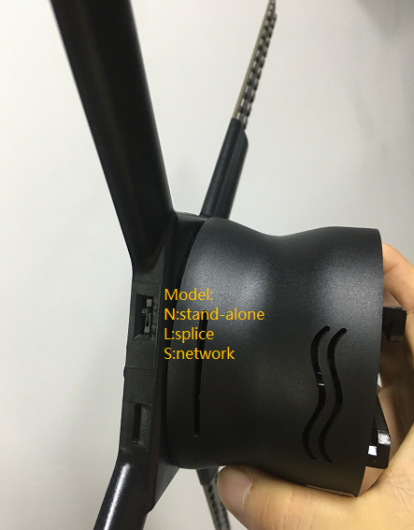

4.  Switching

It is necessary to pull the switch to the corresponding mode before starting the device.

Software Installation

1. Download and Install

Apple Mobile App: you can search “HDisplay”in app store to download and install

Android mobile App: It is recommended to scan the QR code below to download and install, or download and install through the application market (Google play, app store, 360 application market, Huawei application market, etc.)

PC side or web side: please consult relevant business personnel

2. Operating instructions for Stand-alone Version

2.1 Set the switch of the equipment to stand-alone mode and power on the fan.

2.2 Open the HDisplay app, enter the startup interface, click the switch icon in the upper left corner to switch to the stand-alone version.

2.3 Click the "+" sign in the upper right corner to add the device to enter the WiFi connection interface, and select the device beginning with "XLZ", which represents the holographic advertising fan.

2.4 Input WiFi password "88888888" and connect to return to app interface.

3. Functions:

Power on/off:  Power on /off the device

Bluetooth connection: the device can be connected to Bluetooth audio to realize synchronous video playback.

First, turn on the Bluetooth stereo, find the settings on the mobile phone, then find the corresponding Bluetooth name, such as "kl-091" (do not connect the Bluetooth, just remember the name), then enter the app, click the Bluetooth setting switch, input the corresponding Bluetooth name, and click OK.

Brightness adjustment: the brightness of the device can be adjusted by sliding the slider.

Angle adjustment: if the device picture is not straight, it can be adjusted by "+" and "-".

Play / pause: the pause function will stop the picture and return to normal.

Restart: the device will restart the system. You need to re connect the device WiFi to control it.

Play mode: sequence, single and random.

Device information: Click to display the current device status information on the device.

***

Delete media: long press the corresponding media thumbnail, and then click to delete a single media.

Clean up media list:  all media on the device will be cleared by first building

Add media: click the plus sign in the media content item to add text expression, picture and video.

4. Network Version Operation Instructions

1. There are two ways to turn on the default WiFi: push the first method

① . change the router WiFi, change the SSID of router 2.4gwifi to XLZ, and change the password to xlz123456

② . change mobile phone hotspot: IOS system configuration:

Step 1: "setup" - > "general" - > "about local computer -" name "(set local name to" XLZ ")

Step 2: Set - personal hotspot - password (set password to "xlz123456")

Android system configuration:

Setting path: settings - personal hotspot (configure default hotspot name "XLZ" and password "xlz123456")

Note: due to the differences of Android phone styles, the hot spot setting path should be set according to the actual mobile phone style.

2. Set the switch of the device to network mode and power on

3. Open the HDisplay app, enter the startup interface, click the switch icon in the upper left corner to switch to the network version.

4. Register an account with your mobile phone or email and log in to the main interface.

5. Click "scan" in the "+" in the upper right corner of the main interface to scan the QR code of the label on the device, or "add device" to input the SN code displayed on the device startup screen to add the device.

6.In the device list, you can switch, delete devices, add media, or enter the device details interface.

7. Enter the device details page, and "change WiFi" can change the WiFi connected to the device (it must be ensured that the current device is connected to the default WiFi of XLZ and has an external network)

8. The function of the device detail page is similar to the point-to-point function.

9. Cluster function: the cluster function is to solve the problem that multiple devices need to be uploaded and controlled one by one. As long as a cluster is established, it can be distributed to multiple devices with one key and control multiple devices with one key. Click the "+" on the main interface and click "add cluster" to enter the new cluster interface. Enter the cluster name and select the corresponding device model. There are two ways to add equipment. The first way is to input Sn code and select to add equipment. The second way is to select the device added to the cluster in the local device list, and click "finish" to establish the cluster Operate the upload media distribution to each device like a single device.

10. Sharing function: a device belongs to only one manager. Once the device is scanned by a manager, other people can‘t control it. At this time, the manager only needs to input the account number of the other party to share it with the account control.

Attention

1. Holographic advertising fan must be installed firmly.

2. Before starting, please make sure that the items within the range of fan leaf rotation have been cleared.

3. Do not try to touch the fan by hand during operation.

4. This product is composed of high-density components. It is forbidden for users to disassemble, repair, refit or fall heavily, which will cause damage to the fan on one side.

5. The normal working temperature of advertising fan is - 30 ° C ~ 60 ° C. if the ambient temperature is too low or too high, please use the fan carefully.

6. Please do not use sharp objects to scratch the surface of the fan

7. If there is dust, stain or water drop on the surface of the fan, please wipe it with a soft dry cloth.

Model #M6
