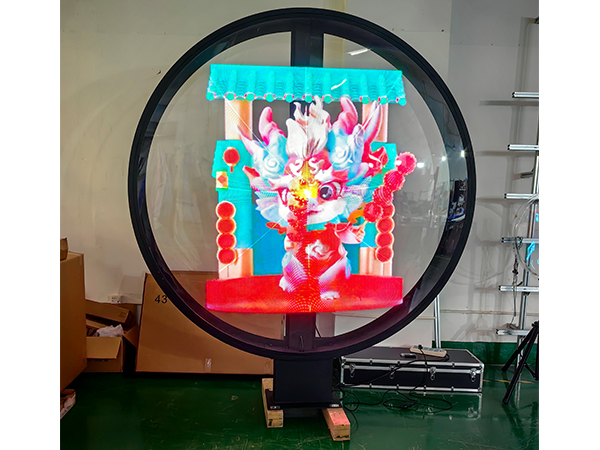

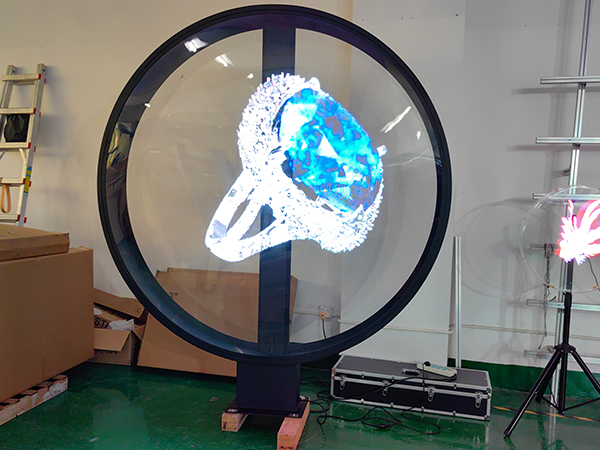

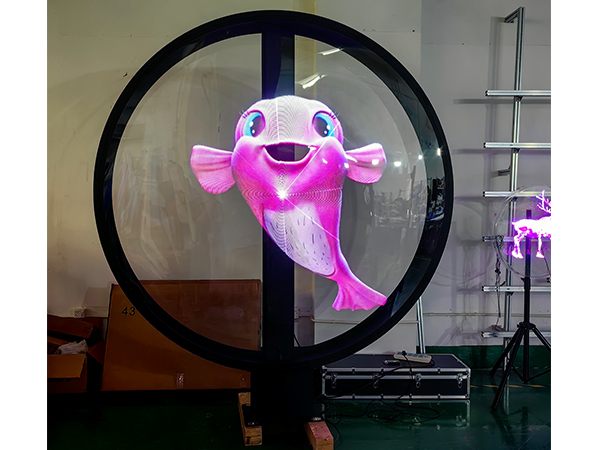

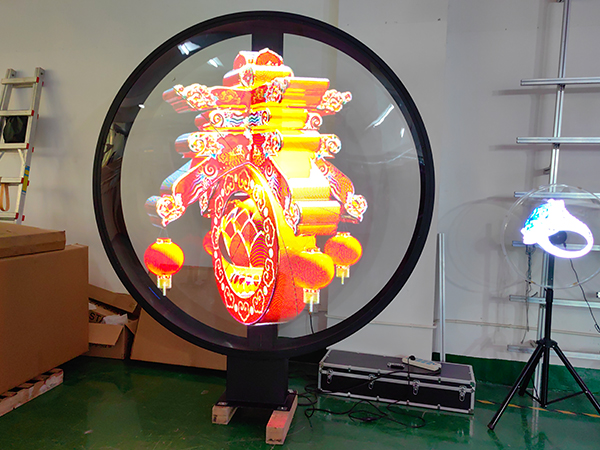

Product name：180CM HDMI 3D LED FAN
File：
Detailed description
Product parameters
HDMI HOLOGRAM 3D LED FAN AVAILABLE SIZE: 5 30 32 42 43 50 57 65 75 80 90 100 150 180 200CM
Video reference:
https://www.youtube.com/shorts/wqz0WuppnuA
https://www.youtube.com/shorts/KpATnQg2iwU
https://www.youtube.com/shorts/3Gxvp07gvHo
https://www.youtube.com/shorts/FRmk3Rw9NtE
Video reference:
https://www.youtube.com/shorts/wqz0WuppnuA
https://www.youtube.com/shorts/KpATnQg2iwU
https://www.youtube.com/shorts/3Gxvp07gvHo
https://www.youtube.com/shorts/FRmk3Rw9NtE
| Model | TPK-S50 | TPK-S6 |
| Equipment system | Android Intelligent System | Android Intelligent System |
| Main control (main frequency) | Quanzhi A40I (quad core 1.2GHz) | Quanzhi A40I (quad core 1.2GHz) |
| Display Size | 47CM*47CM | 56CM*56CM |
| thickness | 8.5CM | 8.5CM |
| resolution ratio | 2800*512 | 2800*612 |
| Number of LED beads | 512 | 612 |
| viewing angle | 176° | 176° |
| rated power | 85W/24V | 125W/24V |
| INPUT VOLTAGE | 100-240VAC,50/60HZ | 100-240VAC,50/60HZ |
| Storage | 8GB | 8GB |
| Video/Image Format | MP4/JPG, | MP4/JPG, |
| Bluetooth audio output | support | support |
| Remote control | support | support |
| refresh frequency | 3840Mhz (2037 1920MHZ) | 3840Mhz (2037 1920MHZ) |
| Video processing method | FPGA hardware processing | FPGA hardware processing |
| Splicing method | Support LAN splicing/remote cloud splicing | Support LAN splicing/remote cloud splicing |
| Decoding method | Hard decoding | Hard decoding |
| Drive light IC | Jichuang 2153 | Jichuang 2153 |
| Splice center point spacing | 335mm | 400mm |
| Content replacement method | Mobile APP, WEB, PC | Mobile APP, WEB, PC |
| Software Support System | Windows，IOS,Android | Windows，IOS,Android |
| colour | black | black |
| weight | 0.78KG | 0.78KG |
| transparency | 92% | 92% |
| noise | 42decibels | 46decibels |
| brightness | 2250cd/m2 | 2250cd/m2 |
| Frame rate | 24 frames/second | 24 frames/second |
| revolution | 720/分 | 720/分 |
| Functional characteristics | Supports point-to-point control, network remote control, clustering, text ball, image cube | Supports point-to-point control, network remote control, clustering, text ball, image cube |
| Provide upload software | free | free |
| Material | ABS+PC/AL | ABS+PC/AL |
| Theoretical lifespan | 30000 hours | 30000 hours |
| Warranty period | 12 months | 12 months |
| TPK-S6L | TPK-M6 | TPK-M7 |
| Android Intelligent System | Android Intelligent System | Android Intelligent System |
| Quanzhi A40I (quad core 1.2GHz) | Quanzhi A40I (quad core 1.2GHz) | Quanzhi A40I (quad core 1.2GHz) |
| 64.5*64.5CM | 64.5*64.5CM | 72.5*72.5CM |
| 8.5CM | 8.5CM | 8.5CM |
| 2800*704 | 2800*896 | 2800*1024 |
| 704 | 896 | 1024 |
| 176° | 176° | 176° |
| 94W/24V | 168W/24V | 195W/24V |
| 100-240VAC,50/60HZ | 100-240VAC,50/60HZ | 100-240VAC,50/60HZ |
| 8GB | 8GB | 8GB |
| MP4/JPG, | MP4/JPG, | MP4/JPG, |
| support | support | support |
| support | support | support |
| 3840Mhz (2037 1920MHZ) | 3840Mhz (2037 1920MHZ) | 3840Mhz (2037 1920MHZ) |
| FPGA hardware processing | FPGA hardware processing | FPGA hardware processing |
| Support LAN splicing/remote cloud splicing | Support LAN splicing/remote cloud splicing | Support LAN splicing/remote cloud splicing |
| Hard decoding | Hard decoding | Hard decoding |
| Jichuang 2153 | Jichuang 2153 | Jichuang 2153 |
| 460mm | 460mm | 517mm |
| Mobile APP, WEB, PC | Mobile APP, WEB, PC | Mobile APP, WEB, PC |
| Windows，IOS,Android | Windows，IOS,Android | Windows，IOS,Android |
| black | black | black |
| 0.78KG | 0.78KG | 0.78KG |
| 92% | 92% | 92% |
| 50decibels | 50decibels | 52decibels |
| 2450cd/m2 | 3000cd/m2 | 3000cd/m2 |
| 24 frames/second | 24 frames/second | 24 frames/second |
| 720/分 | 720/分 | 720/分 |
| Supports point-to-point control, network remote control, clustering, text ball, image cube | Supports point-to-point control, network remote control, clustering, text ball, image cube | Supports point-to-point control, network remote control, clustering, text ball, image cube |
| free | free | free |
| ABS+PC/AL | ABS+PC/AL | ABS+PC/AL |
| 30000 hours | 30000 hours | 30000 hours |
| 12 months | 12 months | 12 months |
| TPK-S9L | TPK-S10 | TPK-S13 |
| Android Intelligent System | Android Intelligent System | Android Intelligent System |
| Quanzhi A40I (quad core 1.2GHz) | Quanzhi A40I (quad core 1.2GHz) | Quanzhi A40I (quad core 1.2GHz) |
| 85*85CM | 100*100CM | 130CM*130CM |
| 10CM | 10CM | 14.5CM |
| 2800*896 | 2800*1024 | 2800*3066 |
| 1024 | 1024 | 3066 |
| 176° | 176° | 176° |
| 185W/24V | 250W/24V | 450W/24V |
| 100-240VAC,50/60HZ | 100-240VAC,50/60HZ | 100-240VAC,50/60HZ |
| 8GB | 8GB | 8GB |
| MP4/JPG, | MP4/JPG, | MP4/JPG, |
| support | support | support |
| support | support | support |
| 3840Mhz (2037 1920MHZ) | 3840Mhz (2037 1920MHZ) | 3840Mhz (2037 1920MHZ) |
| FPGA hardware processing | FPGA hardware processing | FPGA hardware processing |
| Support LAN splicing/remote cloud splicing | Support LAN splicing/remote cloud splicing | Support LAN splicing/remote cloud splicing |
| Hard decoding | Hard decoding | Hard decoding |
| Jichuang 2153 | Jichuang 2153 | Jichuang 2153 |
| 603mm | 715mm | 1070mm |
| Mobile APP, WEB, PC | Mobile APP, WEB, PC | Mobile APP, WEB, PC |
| Windows，IOS,Android | Windows，IOS,Android | Windows，IOS,Android |
| black | black | black |
| 1.68KG | 1.82KG | 4.5KG |
| 92% | 92% | 90% |
| 60decibels | 60decibels | 70decibels |
| 2800cd/m2 | 2800cd/m2 | 3740cd/m2 |
| 24 frames/second | 24 frames/second | 24 frames/second |
| 720/分 | 720/分 | 360/分 |
| Supports point-to-point control, network remote control, clustering, text ball, image cube | Supports point-to-point control, network remote control, clustering, text ball, image cube | Supports point-to-point control, network remote control, clustering, text ball, image cube |
| free | free | free |
| ABS+PC/AL | ABS+PC/AL | Aluminum alloy profiles |
| 30000 hours | 30000 hours | 30000 hours |
| 12 months | 12 months | 12 months |
| Packaging size: Inner box (size: 550 * 260 * 152mm, weight: 2.60KG including equipment) | Packaging size: Inner box (size: 550 * 260 * 152mm, weight: 2.60KG including equipment) | Packaging size: Inner box (size: 800 * 430 * 250mm, weight: 18KG including equipment) |
| TPK-S15 | TPK-S20 |
| Android Intelligent System | Android Intelligent System |
| Quanzhi A40I (quad core 1.2GHz) | Quanzhi A40I (quad core 1.2GHz) |
| 151*151CM | 198*198CM |
| 14.5CM | 14.5CM |
| 2800*3072 | 2800*3066 |
| 3072 | 3066 |
| 176° | 176° |
| 485W/24V | 490W/24V |
| 100-240VAC,50/60HZ | 100-240VAC,50/60HZ |
| 8GB | 8GB |
| MP4/JPG, | MP4/JPG, |
| support | support |
| support | support |
| 3840Mhz (2037 1920MHZ) | 3840Mhz (2037 1920MHZ) |
| FPGA hardware processing | FPGA hardware processing |
| Support LAN splicing/remote cloud splicing | Support LAN splicing/remote cloud splicing |
| Hard decoding | Hard decoding |
| Jichuang 2153 | Jichuang 2153 |
| 1070mm | 1400mm |
| Mobile APP, WEB, PC | Mobile APP, WEB, PC |
| Windows，IOS,Android | Windows，IOS,Android |
| black | black |
| 6KG | 7KG |
| 90% | 90% |
| 80decibels | 100decibels |
| 3740cd/m2 | 5000cd/m2 |
| 24 frames/second | 24 frames/second |
| 350/分 | 350/分 |
| Supports point-to-point control, network remote control, clustering, text ball, image cube | Supports point-to-point control, network remote control, clustering, text ball, image cube |
| free | free |
| Aluminum alloy profiles | Aluminum alloy profiles |
| 30000 hours | 30000 hours |
| 12 months | 12 months |
| Packaging size: Inner box (size: 800 * 430 * 250mm, weight: 20KG including equipment) | Packaging size: Inner box (size: 1120 * 430 * 250mm, weight: including equipment of 22KG) |
HDMI HOLOGRAM 3D LED FAN AVAILABLE SIZE: 5 30 32 42 43 50 57 65 75 80 90 100 150 180 200CM
Video reference:https://www.youtube.com/shorts/wqz0WuppnuA
https://www.youtube.com/shorts/KpATnQg2iwU
https://www.youtube.com/shorts/3Gxvp07gvHo
https://www.youtube.com/shorts/FRmk3Rw9NtE
A 3D LED Fan with SD Card, Bluetooth, WiFi, and FHD HDMI Input is an advanced version of the traditional LED fan display, offering multiple ways to control and display content. Here’s how each feature works:
1. 3D LED Display Mechanism (POV Technology)
The fan has LED strips on its blades that spin rapidly (typically 600–2000 RPM).
Using Persistence of Vision (POV), the LEDs flash images in sync with rotation, creating a floating 3D holographic effect.
The faster the fan spins, the smoother the display appears.
2. SD Card Support (Offline Playback)
How it works:
Insert an SD card with pre-loaded images/videos (usually in MP4, AVI, or GIF formats).
The fan reads the files and displays them in a loop.
Supported formats:
Video: MP4, AVI, MOV
Images: JPG, PNG, BMP
Some models support playlists for sequential playback.
3. Bluetooth Connectivity (Wireless Control)
How it works:
Pair the fan with a smartphone/tablet via Bluetooth.
Use a dedicated app (provided by the manufacturer) to:
Upload images/videos directly.
Adjust brightness, speed, and display effects.
Control playback (play/pause/loop).
Limitations:
Short-range (~10m).
Some apps may have limited format support.
4. WiFi Connectivity (Remote & Cloud Control)
How it works:
Connect the fan to WiFi (2.4GHz usually).
Control via web interface or mobile app (even remotely).
Some models support:
Cloud storage (upload content directly).
Scheduled playback (set timers for ads/display).
Multi-device sync (control multiple fans at once).
Advantages:
No need for physical SD cards.
Real-time content updates.
5. FHD HDMI Input (Real-Time Display)
How it works:
Connect an HDMI cable from a PC, gaming console, or media player to the fan.
The fan acts as a secondary display, showing live content (games, videos, presentations).
Supported resolutions:
1080p (FHD) is standard.
Some models may support 4K downscaling.
Best for:
Gaming (floating live gameplay).
Digital signage (real-time ads).
Presentations (unique visual tool).
How All Features Work Together?
For offline use → Load content via SD card.
For wireless control → Use Bluetooth/WiFi (app or cloud).
For live display → Connect via HDMI (PC/console).
For scheduled ads → Use WiFi cloud management.
Pros & Cons of This Setup
✅ Multiple control options (SD, BT, WiFi, HDMI).
✅ Real-time & offline playback.
✅ Remote management (WiFi/cloud).
❌ WiFi/Bluetooth range limits.
❌ HDMI latency (minor delay in live display).
❌ Higher power consumption than basic models.
.jpg)
.jpg)
.jpg)
.jpg)

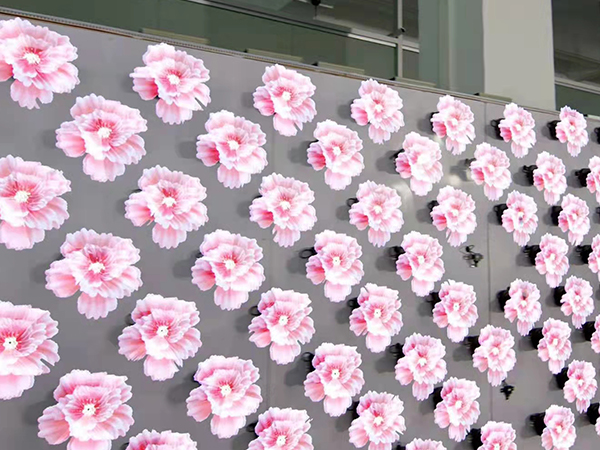

On the Use of Stitching
1.65 cm model must be selected for splicing（Z3）
2.Install the equipment at fixed intervals as shown in the following figure：
Unit (MM)
The red circle indicates that the machine is not on the same plane as the black circle. It needs to be padded 2-3 centimeters high.
3.Cut the video content according to the arrangement of device splicing and change the video name according to the requirement.
4.Send the cut video content to the corresponding machine
5. Automatic synchronous display after boot-up
.jpg)
.jpg)
.png)
.jpg)
.jpg)
.jpg)
.jpg)
.png)
