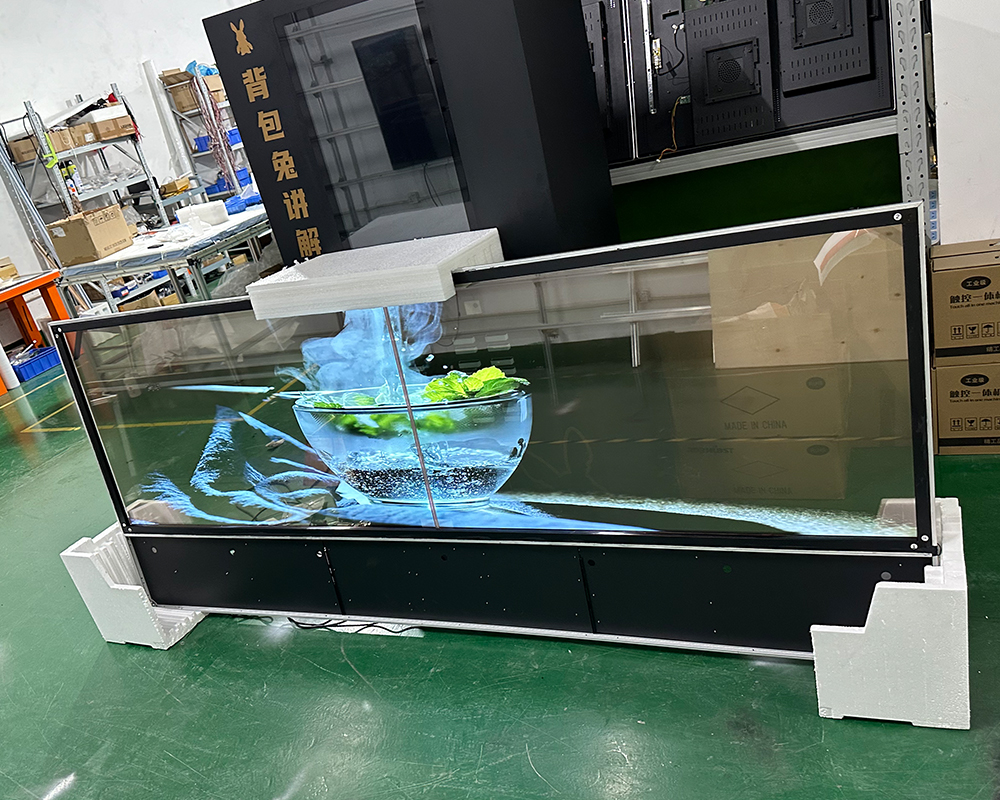

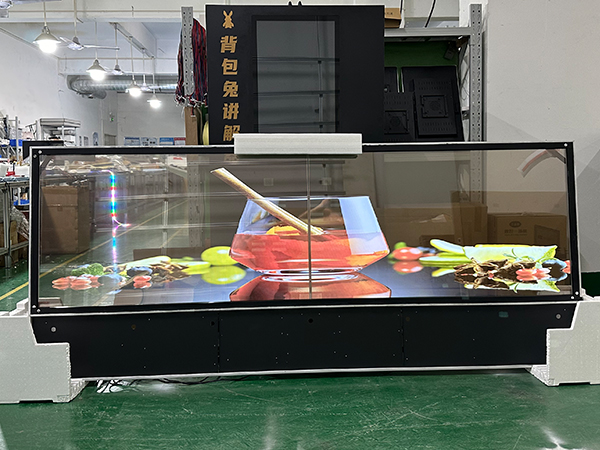

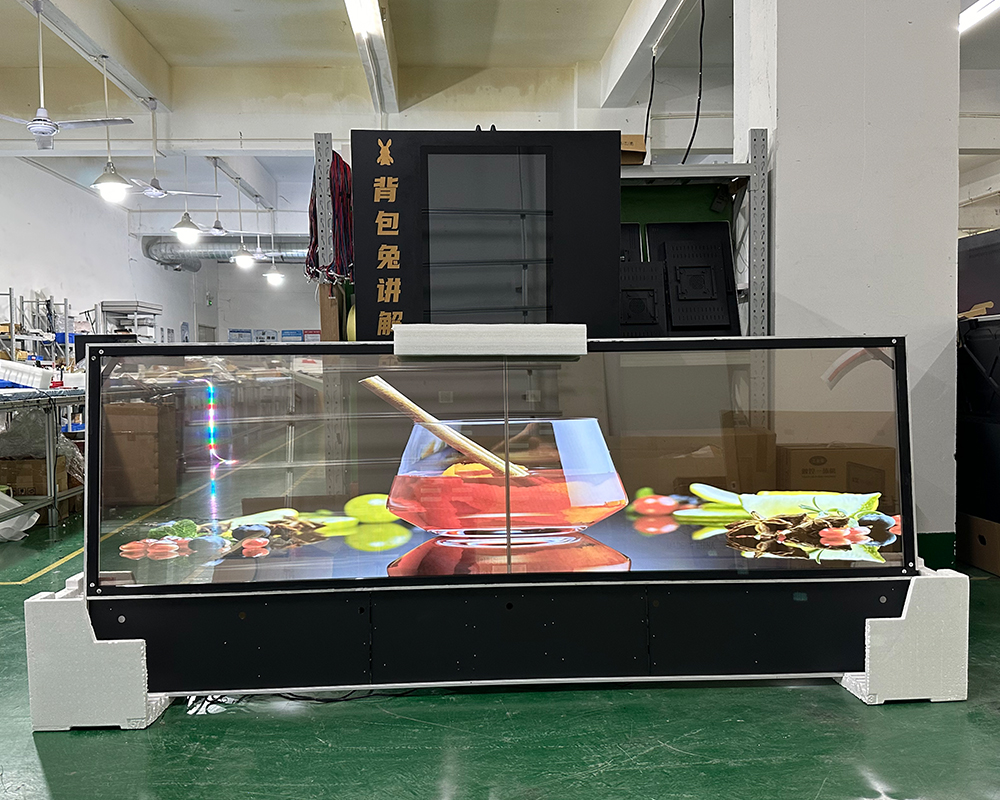

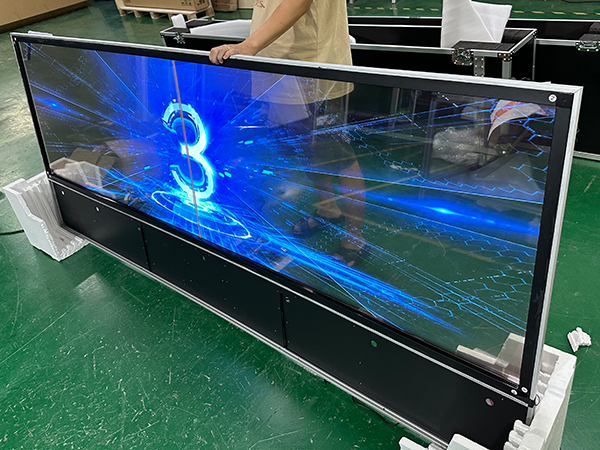

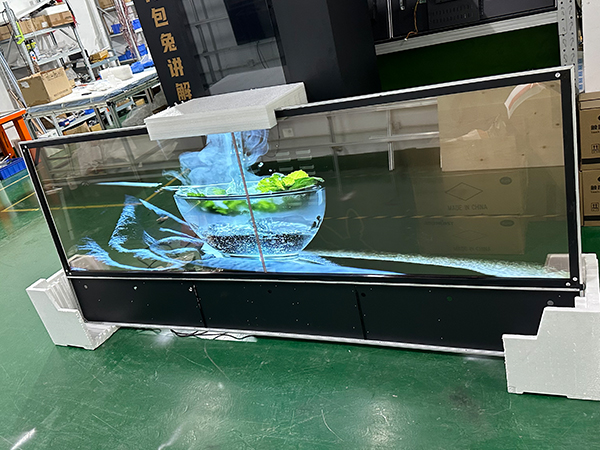

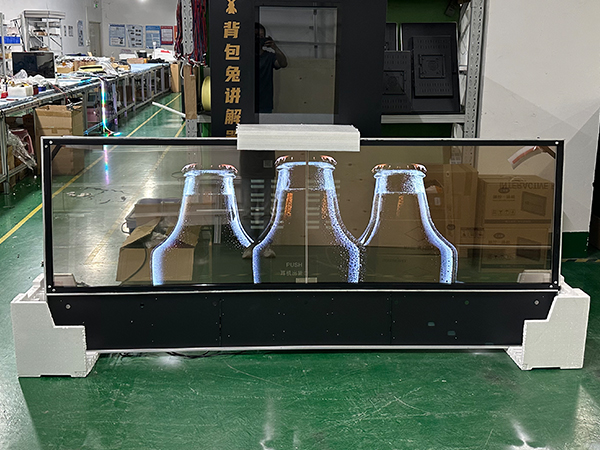

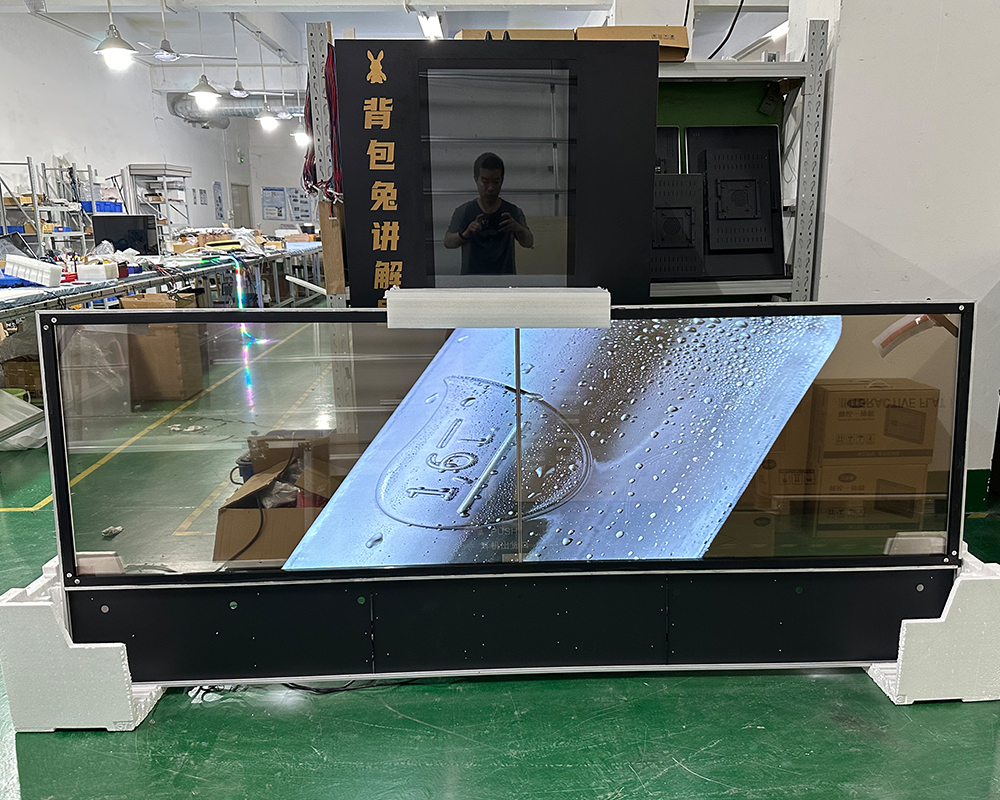

Product name：Interactive transparent OLED 1X2 video wall LG OLED 600cd brightness with IR touch

File：

Detailed description Product parameters

1x2 transparent OLED video wall from LG with 600 cd/m² brightness and IR touch functionality. Here’s a detailed breakdown of what’s available and what you might need:

1. LG Transparent OLED Models with High Brightness & Touch

LG’s transparent OLED displays (like the T-series) typically offer ~450–500 cd/m² brightness at ~40–45% transparency. A 600 cd/m² variant would likely be a custom or specialized model (check with LG’s B2B division).

Possible Models:

LG 55EW5T (55" Transparent OLED)

Brightness: ~450–500 cd/m²

Transparency: ~40%

Resolution: 1920×1080 (Full HD)

Touch Option: IR touch overlay available (add-on)

LG 77EW5T (77" Transparent OLED)

Higher brightness possible in custom configurations

For 600 cd/m²:

You may need a custom high-brightness version (contact LG B2B or authorized AV integrators).

Alternative: Add external IR touch frames (like from Zytronic, Baanto, or PQ Labs) to existing LG transparent OLEDs.

2. 1x2 Video Wall Configuration

Two displays side-by-side (seamless tiling possible due to ultra-thin bezels).

Requires:

Video wall controller (for synchronized content).

IR touch overlay (if not integrated).

Mounting system (for transparent display stability).

3. IR Touch Integration

Built-in IR (if available): Some LG commercial displays support touch.

Aftermarket IR Touch Frames:

Brands: PQ Labs, Zytronic, Baanto

Multi-touch support (10+ points).

Works with transparent displays (must ensure compatibility).

4. Where to Buy / Deploy

LG B2B Sales (Direct inquiry for high-brightness + touch models).

AV Integrators (Like AVI-SPL, Diversified, or LG Premier Partners).

Touch Overlay Suppliers (PQ Labs, Zytronic).

5. Estimated Cost (Approx.)

LG 55" Transparent OLED (each): ~

15000

–

15,000–25,000+

IR Touch Overlay (each): ~

2000

–

2,000–5,000

Video Wall Controller: ~

1500

–

1,500–5,000

Total (1x2 setup): ~

35000

–

35,000–60,000+

Recommendation

Contact LG’s B2B team to confirm 600 cd/m² transparent OLED availability.

Work with an AV integrator for seamless IR touch + video wall setup.

Test before deployment (transparent displays have unique calibration needs)

A 1x2 transparent OLED video wall with IR touch combines transparent display technology, video wall synchronization, and touch interactivity. Here’s how it works step by step BY TOPADKIOSK:

how does transparent oled video wall 1x2 WITH IR TOUCH WORKS

1. Transparent OLED Display Basics

How Transparency Works:

LG’s transparent OLEDs (e.g., 55EW5T) use a see-through panel with pixels that emit light while allowing background visibility (~40–45% transparency).

No backlight (unlike LCDs), so the display appears translucent when off.

Brightness (600 cd/m²):

Higher brightness compensates for ambient light, ensuring visibility even in bright environments (museums, retail, etc.).

2. 1x2 Video Wall Configuration

Physical Setup:

Two transparent OLED panels are mounted side-by-side (horizontal arrangement).

Near-zero bezels ensure seamless visuals across both screens.

Content Synchronization:

A video wall controller (e.g., LG’s webOS Signage Player or third-party like NVIDIA Quadro Sync) splits and synchronizes content across both panels.

Example: A single 4K signal splits into two 1080p signals (one per panel).

3. IR Touch Integration

How IR Touch Works:

Infrared (IR) touch frames are mounted on the edges of the display(s).

The frame projects an invisible IR grid across the screen surface.

When a finger/stylus interrupts the grid, sensors detect the touch coordinates.

Multi-Touch Support:

Most IR overlays support 10–20+ touch points (depends on the model, e.g., PQ Labs IR frame).

Touch data is sent to a PC/controller (via USB) for interactive applications.

Challenges with Transparent Displays:

IR frames must be calibrated to avoid interference from the transparent background.

May require edge-mounted frames (not embedded) to maintain transparency.

4. System Workflow (Step-by-Step)

Content Source (PC/media player) sends a video signal to the video wall controller.

Controller splits the signal to feed both OLED panels (1x2).

IR touch frames detect user input and send coordinates to the touch controller.

Touch controller relays input to the content source (e.g., interactive software like Unity or TouchDesigner).

Real-time updates: Content reacts to touches (e.g., scrolling, zooming, triggering animations).

5. Key Components Needed

Component Purpose Example Models

Transparent OLED Displays Display content LG 55EW5T (55")

IR Touch Overlay Adds touch interactivity PQ Labs E4R, Baanto ShadowSense

Video Wall Controller Syncs content across panels LG webOS Signage, Datapath FX4

Mounting System Secures panels + IR frames Peerless-AV transparent mounts

Interactive Software Drives touch content Intuiface, TouchDesigner

6. Use Cases

Retail: Interactive product showcases (users touch to see specs/promotions).

Museums: Transparent info kiosks overlaid on exhibits.

Corporate Lobbies: Dynamic branding with touch navigation.

7. Limitations & Considerations

Transparency vs. Brightness: Higher brightness (600 cd/m²) may reduce transparency slightly.

IR Touch Calibration: Must account for the display’s transparency to avoid false touches.

Cost: High (1x2 setup with touch can exceed $50,000+).

Summary

A 1x2 transparent OLED video wall with IR touch works by:

Displaying synchronized content across two see-through panels.

Using IR sensors to detect touches and trigger interactive responses.

Requiring precise calibration to balance transparency, brightness, and touch accuracy.

Would you like recommendations for specific IR touch models compatible with LG’s transparent OLEDs?
